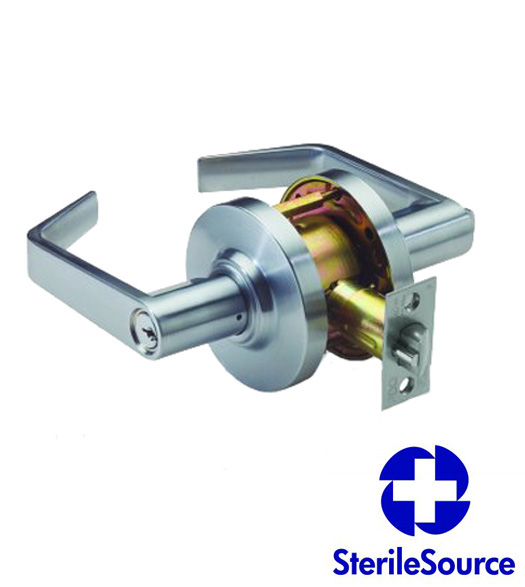

Philadelphia style (standard commercial lever design style) commercial lever features Grade 2 durability. This Antimicrobial Commercial Standard Duty Grade 2 Door Lever will fit many applications. Available in a wide selection of functions with an antimicrobial coating.

SterileSource is a durable, transparent coating. It is designed to reduce the occurrence of and exposure to microbes of all kinds. It is extremely effective against mold, fungi, algae, and harmful bacteria.

Complies with ANSI/BHMA A156.2-1996, Series 4000, Grade 2. Listed by UL / ULC for ratings of"A" Label (3 hours) and less, UL10C / UBC 7-2 (1997) positive pressure, for single doors up to 4'0" x 8'0"

These commercial levers are ADA compliant and fully adjustable for 1-3/8" to 1-3/4" doors. Fit standard 160 and 161 commercial door prep (2-1/8" bore hole). Removable thru-bolts for use on doors that are not pre-drilled and do not require thru-bolting.

Specifications for the PDQ SD Series Antimicrobial Commercial Lever:

• SterileSource Antimicrobial Coating
• Lever Length: 6-3/8"
• Lever Projection: 2-1/2"
• Clearance from Tip of Lever: 1/4"
• Rose Diameter: 3-3/8"
• Door Thickness: Adjustable for 1-3/8" to 1-3/4" thick.
• Door Prep: Fits standard 160 or 161 door prep.
• Backsets: Standard 2-3/4", Optional 2-3/8"
• Front: 2-1/4" x 1-1/8" for 2-3/4" backset. 2-1/4" x 1" for 2-3/8" backset.
• Strike: 4-7/8" X 1-1/4" (Standard ASA). Stainless steel, or wrought brass.
• Latchbolt: 1/2" throw. Adjustable front for flat or beveled doors.
• Thru-bolts: Removable
• Handing: Non-handed.
• Trim: Philadelphia Levers zinc diecast.
• Keyways: Schlage "C" Standard (keyed functions).
• Cylinder: Brass 6-pin cylinder keyed to 5-pins.

Available Functions for the PDQ SD Series Commercial Lever:

• Single Dummy: For use as a pull or to match trim, one (1) side.
• Communicating: Latch bolt operated by inside lever. Blank plate outside.
• Passage (Hall or Closet)(ANSI F75): Latchbolt operated by lever from either side at all times. For doors that don't need locking.
• Privacy (Bedroom or Bathroom)(ANSI F76): Latchbolt operated by lever from either side or emergency release in outside lever. Outside locked by push button on inside lever. Outside lever unlocked by emergency release in outside lever, rotating inside lever or closing door.
• Keyed Entry (ANSI F81): Outside lever locked by push/turn button inside. When outside lever is locked by push button inside - key from outside or rotating inside lever unlocks outside lever. When outside lever is locked by pushing and turning the button inside - key from outside or rotating inside lever retracts the latch but does not unlock outside lever.
• Classroom (ANSI F84): Outside lever locked and unlocked by key. Inside lever always unlocked.
• Storeroom (ANSI F86): Outside lever fixed. Entry by key only. Inside lever always free (unlocked).

*Extended Lead-Time. Please Allow 4 - 5 Weeks for Delivery.* Please Contact Us if you have any questions.

Select Function - Important Ordering Guide SD211PHL: Single Dummy SD125PHL: Communicating Add  $42.00 SD126PHL: Passage (Hall or Closet) Add  $42.00 SD176PHL: Privacy (Bedroom or Bathroom) Add  $60.00 SD116PHL: Keyed Entry Add  $54.00 SD148PHL: Classroom Add  $54.00 SD115PHL: Storeroom Add  $54.00   Select Finish  626: Brushed Chrome 605: Bright Brass, Clear Coated Add  $6.75 613: Oil Rubbed Bronze Add  $6.75   Select Backset - Important Ordering Guide 2-3/4" Backset 2-3/8" Backset   Select Keying - Important Ordering Guide Non-Keyed Keyed Different Keyed Alike Add  $5.50
Quantity
