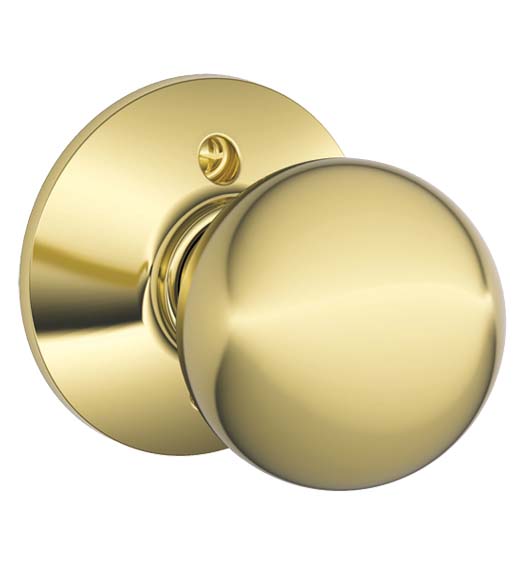

Schlage residential series Orbit Door Knob Sets are easy to install on standard residential door cut-outs. The Orbit Classic Round Ball knob is available in an array different finish colors and the universal latch fits either 2-3/8" or 2-3/4" backsets. Available in single dummy, passage, privacy, keyed entry, and storeroom lock functions.

When you install a Schlage knob, you safeguard your home and family as well as your peace of mind. Schlage knobs are study and do not tarnish, discolor, or corrode easily. Plus, the wide variety of finishes may make your decision tough--just like this knob.

Features of the Schlage Orbit Door Knob:

• One piece knob for better security and appearance.
• Fits standard pre-drilled doors.
• ANSI A156.2 Series 4000 Grade 2.
• Pressure-cast zinc tubular lock housing.
• Solid brass knob and trim rose.
• Sold as complete set.
• Easy to install.
• Lifetime mechanical warranty on residential applications.

Specifications of the F-Series Schlage Orbit Door Knob:

• Knob Diameter: 2-1/8"
• Projection: 2-7/8"
• Rose Diameter: 2-3/4"
• Adjustable Backset for 2-3/8" or 2-3/4"
• Adjustable for 1-3/8" up to 1-3/4" thick doors

When Selecting a Function:

• Single Dummy: For use as a pull or to match trim on one side of the door. It does not latch and does not lock.
• Passage (Hall or Closet): For doors that don't need locking.
• Privacy (Bedroom or Bathroom): For doors that could need locking. The lock is activated by a push button in the center of the knob while turning the inside knob releases the lock. It can be opened from the outside with a small circular tool.
• Keyed Entry (Keyed Lock): Use when a handle operated by a lock is needed. Unlocked by a key from the outside when locked by inside turn button. Inside always unlocked.
• Storeroom Lock (Keyed Entry Only): Use when entry by a key is needed. Always locked, entry from the outside requires a key. The inside knob is always unlocked. The outside knob is fixed.

Lifetime Bright Brass (505) Finish is not available for single dummy or privacy sets.

Select Function - Important Ordering Guide F170ORB: Single Dummy F10ORB: Passage (Hall or Closet) Add  $21.60 F40ORB: Privacy (Bedroom or Bathroom) Add  $25.60 F51AORB: Keyed Entry (Keyed Lock) Add  $45.60 F80ORB: Storeroom Lock (Keyed Entry Only) Add  $56.00   Select Finish  605: Bright Brass 619: Satin Nickel Add  $2.40 625: Bright Chrome Add  $2.40 626: Satin Chrome Add  $2.40 505: Lifetime Bright Brass Add  $2.40   Keying - Important Ordering Guide Non-Keyed (Dummy, Passage, Privacy) I Only Ordered One Lock Keyed Different Keyed Alike Add  $5.50
