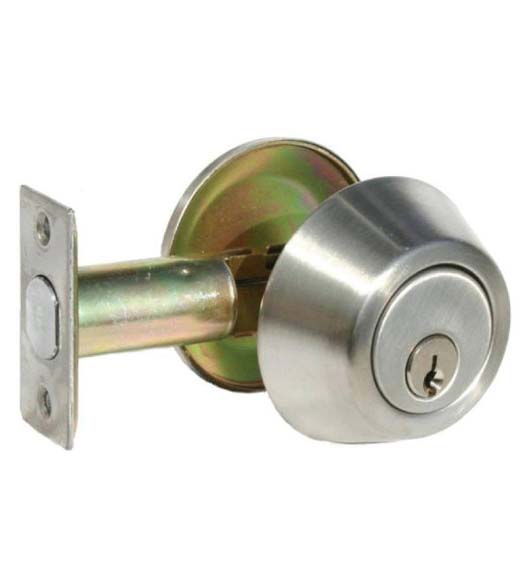

The ADA Compliant Deadbolt features a 5-pin Kwikset keyway so you know it is both secure, and easy to have keyed to match your existing Kwikset locks. This ADA Compliant Handicap Door Lock meets ANSI grade 3 requirements. It will fit doors 1-3/8" to 2" thick with backsets of 2-3/8” or 2-3/4″. For residential and light duty commercial applications.

This deadbolt also available: Schlage Key Lock

Single Cylinder Deadbolt: Deadbolt thrown or retracted by key from the outside and by turn unit on the inside. Bolt automatically deadlocks when fully thrown.

Specifications of the DL-DB251KW-US32D Deadbolt:

• Finish: Brushed Stainless Steel
• Diameter: 2-1/2"
• Meets ANSI 156.2 grade 3 requirements.
• Door Thickness: Adjustable 1-3/8" to 2"
• Backset: Adjustable 2-3/8” or 2-3/4″
• Latch Bolt: 1" throw
• 1/4″ Heavy Gauge Thru-Bolts
• Lock Cylinder: 5 pin solid brass Kwikset keyway standard.
• Handing: Non-handed and reversible

Sold Individually

Keying - Important Ordering Guide Only Ordered One Lock Keyed Different Keyed Alike Add  $5.50
Quantity
