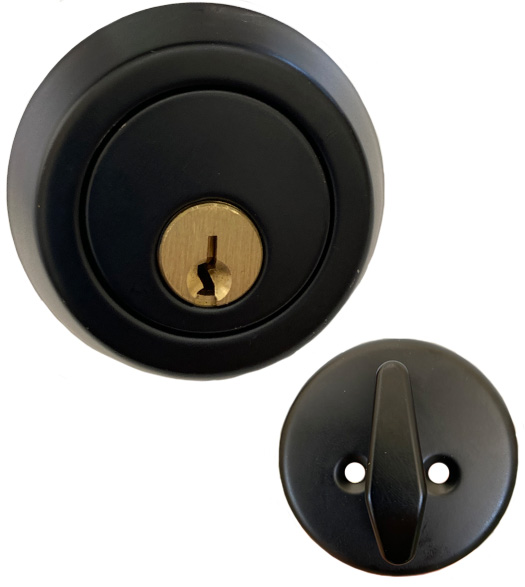

The Imperial ADA Compliant Single Cylinder Deadbolt is easy to install and will fit many standard doors that are 1-3/8" to -3/4" thick with a 2-3/4" backset. This ADA Compliant Handicap Door Lock is made for residential and light duty commercial applications. Featuring a 6-pin Schlage "C" keyway, the Imperial USA DL-DB751 Deadbolt is easy to have keyed to match your existing Schlage locks, which means you'll only have one key for all our your doors. This ADA Compliant Handicap Door Lock is an ANSI grade 2 Single Cylinder Door Lock. Available in either satin chrome or matte black finish.

Single Cylinder Deadbolt: Deadbolt thrown or retracted by key from the outside and by turn unit on the inside. Bolt automatically deadlocks when fully thrown.

Specifications of the DL-DB700 Series Handicap Door Lock:

• Diameter: 2-1/2"
• Meets ANSI 156.2 grade 2 requirements.
• Door Thickness: Adjustable 1-3/8" to 1-3/4"
• Backset: 2-3/8” or 2-3/4″
• Latch Bolt: 1-1/8" x 2-1/4" UL Listed, 1" throw
• Strike: 1-1/8" x 2-3/4" no-lip square corner
• 1/4″ Heavy Gauge Thru-Bolts
• Lock Cylinder: 6 pin solid brass Schlage "C" keyway standard.
• Finish: Satin chrome or matte black
• Handing: Non-handed and reversible

Sold Individually
