| Item No: |
AHI-SAO-PAOLO |
| List Price: |
$59.00 |
| Your Price: |
$50.15 |

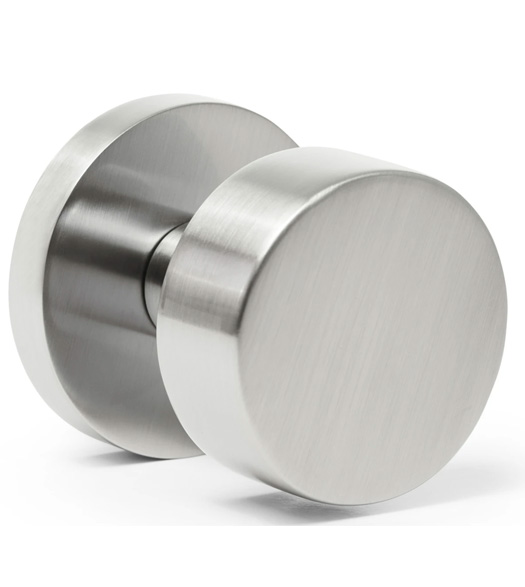

AHI SAO-PAOLO, Satin Nickel Sao Paolo Knob with Round Rose
The Modern Sao Paolo Knob comes in a satin nickel finish that is as contemporary as the knobset itself. This Round Knob with Round Rose is sleek, making it an excellent way to upgrade your door hardware. The Satin Nickel Sao Paolo Knob with Round Rose is available in dummy, passage, and privacy functions. Extremely easy to install, it will fit most pre-drilled doors.
Features of the Satin Nickel Sao Paolo Knob:
- Fits standard door cut outs (2-1/8" pre-drilled doors).
- Solid metal knob and trim rose.
- Sold as complete set.
- Easy to install.
Specifications of the Sao Paolo Modern Knobset with Round Rose:
- Material: Brass
- Finish: Satin Nickel
- Knob Diameter: 2.03" (51.6mm)
- Knob Thickness: .075" (19.1mm)
- Knob Stem Diameter: 0.83" (21mm)
- Knob Projection: 1.88" (47.6mm)
- Rose Diameter: 2.36" (59.9mm)
- Rose Projection: 0.39" (10mm)
- Door Thickness: 1-3/8’’ to 1-3/4"
- Backset: 2-3/8" or 2-3/4"
- Handing: non-handed
- AHI Sao Paolo Dimensions Diagram (PDF)
Available Functions:
- Single Dummy: No door latch. Door knob on one side of the door. Visible surface mounting screws. Package Includes: 1 knob, 1 rose, and mounting screws.
- Double Dummy: No door latch. Door knobs on both sides of the door. Visible surface mounting screws on interior and exterior. Package Includes: 2 knobs, 2 roses, and mounting screws.
- Passage (Hall or Closet): For doors that don't need locking. Latch operates from either side of door. Visible mounting screws on interior. Package Includes: 2 knobs, 2 roses, door latch, strike plate, dust box, faceplate, spindle, and mounting screws.
- Privacy (Bedroom or Bathroom): For doors that could need privacy locking. Latch operates from either side. Privacy pin on interior rose engages privacy; emergency release hole is on exterior rose. Visible mounting screws on interior. Package Includes: 2 knobs, 2 roses, privacy button, door latch, strike plate, dust box, faceplate, spindle, and mounting screws.
Sold Individually
|
