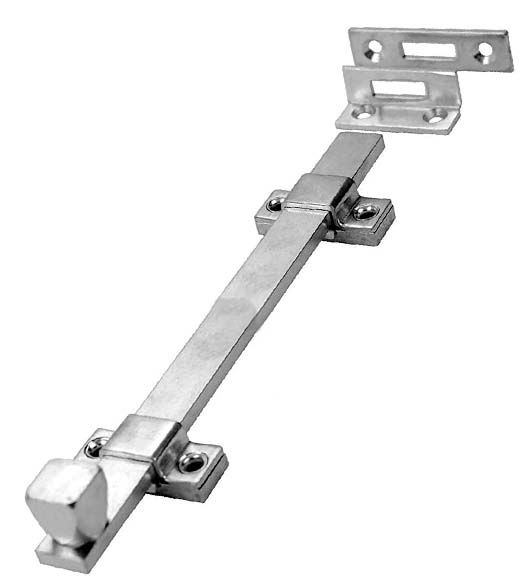

Don-Jo 1581-626, 12 Inch Slide Bolt
These 12" surface mounted door bolts are made of steel and are UL Listed for fire doors with a Brushed Chrome finish.
Also available:
Shorter 8" Slide Bolt
Specifications of the Don-Jo 1581 Door Slide Bolt:
- Bolt Length: 12"
- Bolt Width: 3/4"
- Bolt Thickness: 1/4"
- Bolt Projection: 3/4"
- Max Projection at Knob: 1-3/8"
- Bolt Throw: 1-1/8"
- Guide Plate Width: 2"
- Mortise Strike Length: 2-7/8"
- Mortise Strike Width: 3/4"
- Rim Angle Strike Length: 2"
- Rim Angle Strike Width: 3/4"
- Material: Steel
- UL Rated
- Finish: Brushed Chrome

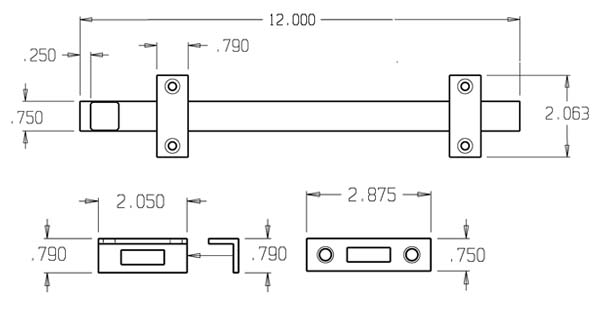

- Don-Jo 1581 Dimensions (PDF)
Packaged complete with mortise strike plate, rim angle strike plate, new guides, and mounting screws.
Sold Individually.
|
