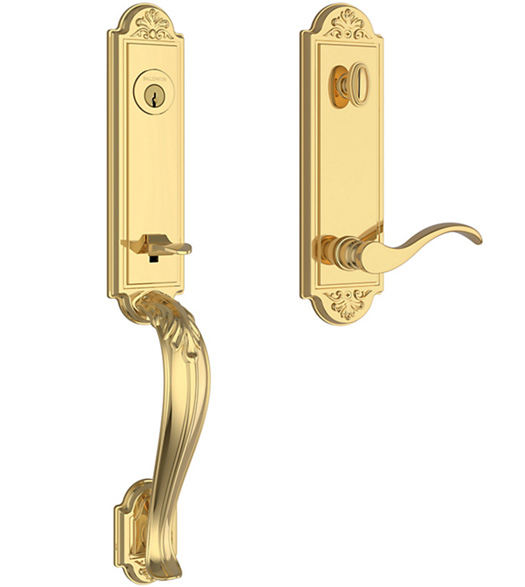

The Elizabeth Handleset is a great choice if you are looking for a glamorous way to introduce visitors to your home. The front door is like a first impression, it tells the story of what sort of people live in a house. The Ornate Elizabeth Entrance Set was designed to fit standard doors 1-3/4 inches thick to 2-1/2 inches thick with backsets of either 2-3/8 inches or 2-3/4 inches. It is available with your choice of 6 beautiful knobs and levers. Choose from a single cylinder or a full dummy handleset.

Features of the Elizabeth Handleset with Matching Elizabeth Interior Escutcheon:

• Fits 2-1/8" cross bore for both deadbolt and grip with a 1" edge bore for both grip latch and deadbolt latch.
• Baldwin C-Keyway.
• Latch: square corner adjustable
• Strike: square corner
• Brass deadbolt features 1" throw. Grip offers 1/2" passage/privacy function bolt.
• Warranty: 25 year finish warranty and a limited lifetime mechanical warranty.

Specifications of the Baldwin Reserve Collection Escutcheon Elizabeth Handleset:

• Exterior Overall Length: 18-11/16"
• Exterior Top Plate Width: 2-11/16"
• Exterior Top Plate Length: 10-5/16"
• Center of Deadbolt to Center of Latch Bore: 5-1/2"
• Center of Latch Bore to Center of Thrubolt: 8-13/32"
• Exterior Grip Projection: 3-5/16"
• Interior Plate Width: 2-11/16"
• Interior Trim Height: 10-5/16"
• Door Thickness: 1-3/4" - 2" standard with optional thick door kit for 2" - 2-1/2".
• Backset: Adjustable for 2-3/8" or 2-3/4"

When Selecting a Function:

• Single Cylinder Emergency Egress: From the exterior, a thumb piece operates the handleset latch and a key operates the deadbolt. From the inside, the deadbolt is thrown by a thumbturn while the interior knob/lever opens the door without having to unlock the deadbolt.
• Full Dummy Set: Trim for non-working doors. It does not latch and does not lock. Usually used as matching trim for the non-working side of double doors.

Select Function - Important Ordering Guide EE: Single Cylinder Emergency Egress FD: Full Dummy   Select Finish  150: Satin Nickel 003: PVD Polished Brass 152: Matte Antique Nickel 112: Venetian Bronze 260: Polished Chrome 055: PVD Polished Nickel 044: PVD Satin Brass 190: Satin Black   Select Door Thickness  STD: 1-3/4" - 2" Door Thickness THK: 2" - 2-1/2" Door Thickness Add  $16.80   Select Interior Trim    DEC-RH: Decorative Lever (right handing)   DEC-LH: Decorative Lever (left handing)   CUR-RH: Curve Lever (right handing)   CUR-LH: Curve Lever (left handing)   FED-RH: Federal Lever (right handing)   FED-LH: Federal Lever (left handing)   ROU: Round Knob   ELL: Ellipse Knob   TRA: Traditional Knob   Select Keying Options - Important Ordering Guide I only ordered one Non-Keyed (dummy) Keyed Differently Keyed Alike Add  $5.50
Quantity
