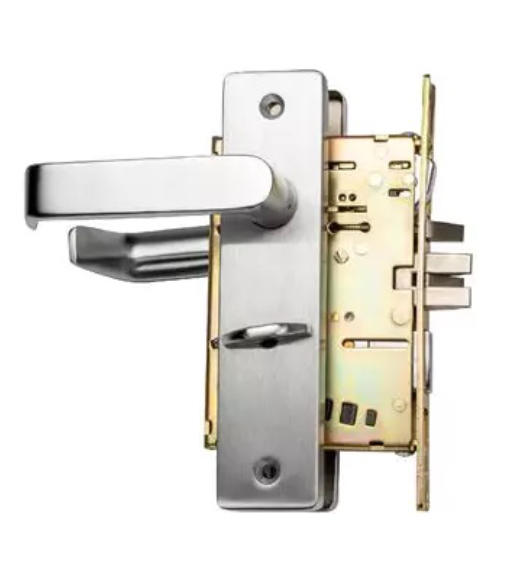

The GLO-DL-DXML53SE series is an entrance function Grade 1 heavy duty commercial mortise lockset with solid brass escutcheon trim and ADA compliant lever. The fire rated latch bolt has a 1" throw and a 6 pin Schlage "C" lock cylinder for security. It includes a 1 year mechanical and finish warranty.

Specifications for the GLO DXML Series Mortise Leversets:

• Heavy Duty Commercial Grade 1
• Mortise Case: 5-13/16" x 4-5/32" x 7/8".
• Armored Front: 8" x 1-1/4"
• Door Thickness: 1-3/4" Contact us for thicker doors.
• Deadbolt: 1" throw
• Door Prep: Fits standard mortise 86 door prep.
• Backset: 2-3/4"
• Hand Case: Handed. Reversible in field.
• Strike: 4-7/8" x 1-1/4"(ASA)
• Escutcheon Plate Height: 8"
• Escutcheon Plate Width: 1-7/8"
• Escutcheon Plate Material: Brass
• Lever Projection: 2-5/8"
• Lever Length: 5"
• Finish: Brushed Chrome
• Keyways: Schlage "C" Standard.
• Cylinder: Brass 6-pin mortise cylinder
• Certifications: UL R15846 Latch 3 Hour Fire Rated, Grade 1, meets all accessibility requirements of the ADA.
• Warranty: 1 Year Mechanical and Finish

Function: for GLO DXML Series Mortise Leversets

• Front Door Deadbolt (ANSI F08 or F10): Latchbolt operated by lever from both sides. Key from outside retracts latchbolt. Toggle locks/unlocks outside lever. Key outside extends/retracts deadbolt. Inside thumbturn extends/retracts deadbolt.
