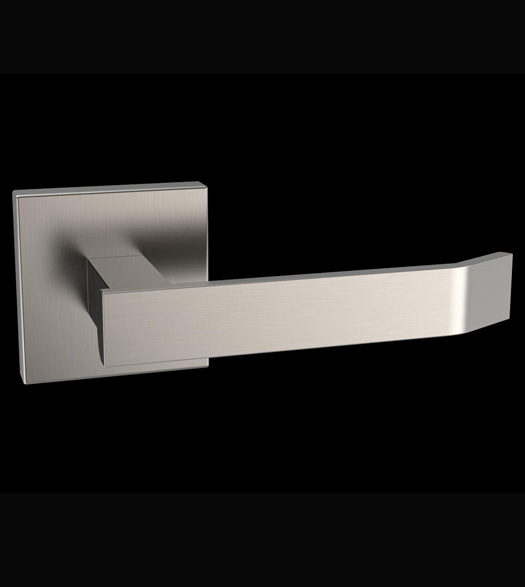

The AHI made Satin Stainless Steel Lever has a square rose and a flat smooth style hand grip that compliments to a modern design home with clean lines. A beautiful yet functional piece, the SIG127-204 Leverset is made of solid stainless steel, making the satin stainless steel finish resistant to scratches and abrasions. A perfect addition to your decor, this door lever will match just about anything. Which is probably why it is one of our most popular styles with customers. The Sarin Leverset is easy to install, fitting all pre-drilled doors. It is ADA compliant. Available for either 2-3/8" or 2-3/4" backsets. Adjustable for door thicknesses from 1-3/8" to 2".

Features of the Stainless Steel AHI SIG127-204 Sarin Leverset:

• For residential or commercial applications
• Fits standard door cut outs (2-1/8" pre-drilled doors)
• Field reversible tubular latch
• Premium latch requires only 28° rotation to retract latchbolt
• Meets standards of the Americans with Disabilities Act (ADA)

Specifications of the SIG127-204 Sarin Stainless Steel Lever With Square Rose:

• Material: 304 Stainless Steel
• Finish: Satin Stainless Steel
• Lever Width: 5-9/16" (141 mm)
• Overall Projection: 2-5/16" (59 mm)
• Lever Projection: 1-15/16" (49 mm)
• Rose Projection: 3/8" (10 mm)
• Spindle Width: 0.31" (8 mm)
• Rose Length: 2-1/2" (64 mm) squared
• Door Thickness: adjustable for 1-3/8" to 2"
• Backset: 2-3/8" or 2-3/4"

When Selecting a Function:

• Single Dummy: For use as a door pull or to match trim. Trim is on one side of door. Lever is surface mounted (mounting plate screws to the doors face).
• Double Dummy: No door latch. Door levers on both sides of the door. For use with a standard 2-1/8" bore hole pre-drilled door.
• Passage (hall or closet): For doors that don't need locking. Latch operates from either side of door.
• Privacy (bedroom or bathroom): For doors that could need privacy locking. Latch operates from either side. Push button on interior rose engages privacy; emergency release hole is on exterior rose. Turning inside lever will release privacy push button and retract the door latch.

Note: Single Dummy is Handed. All other functions are non-handed. Handing Guide

Select Function - Important Ordering Guide SD-RH: Single Dummy (right handing) SD-LH: Single Dummy (left handing) DD: Double Dummy Add  $28.00 PA: Passage (hall or closet) Add  $45.50 PV: Privacy (bedroom or bathroom) Add  $52.50   Select Backset - Important Ordering Guide 2-3/8" Backset 2-3/4" Backset
