Bommer Lavatory Door Spring Hinges are packaged complete with a one (1) Single Action Spring Door Hinges, 2 Backplates, Tension Adjusting Tool and Locking Pin plus brass threaded rod and barrel nuts. Thru-bolt mounted - The threaded rod is field sized for your door thickness.

These full surface spring hinges are normally used on restroom stall doors. Full Surface Hinge - Jamb flange is surface applied to door jamb. Door flange is surface applied to door face.

Specifications for Bommer LB1002-400 Lavatory Door Spring Hinge

• Hinge Material: Brass
• Height: 4"
• Width: 4"
• Corners: 1/4" Radius
• Gauge of Metal: .109
• Adjustable Spring Torque
• Non-Handed
• Full Surface

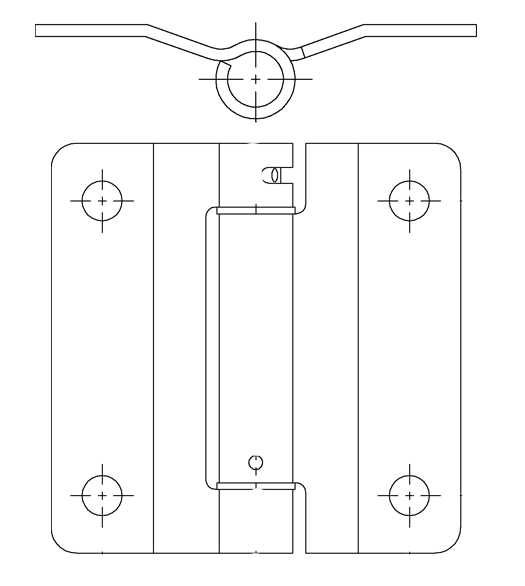

• Bommer LB1002-400 Dimensions Diagram (PDF)

*Sold Individually.

** This item Discontinued. See available Spring Hinges.

Select Finish  626: Brushed Chrome 625: Bright Chrome Add  $7.12
Note: This item is either Special Order or has been Discontinued. Please Contact Us.
Quantity
