For Adams Rite SL-1850 style mortise hookbolt including Global GLO-TH1102 Hookbolt . Available in Aluminum or Dark Bronze finish. Packaged with mounting screws.

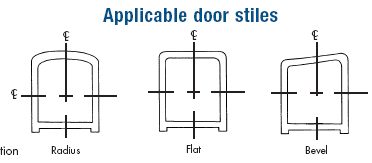

There are 3 basic applicable door styles: Radius, Flat, and Bevel.

When choosing the face plate, there are several plate profiles as illustrated below. Flat, Left Hand (L.H.) Bevel, Right Hand (R.H.) Bevel, Radius, and Radius with Weatherstrip.

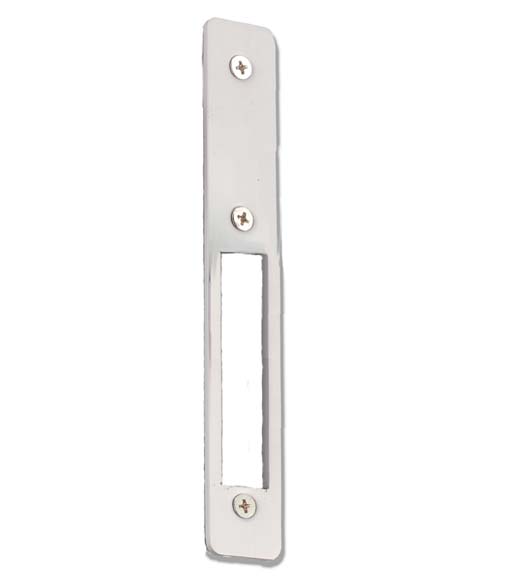

Specifications for the Global TH1100-FP6-10 Mortise Hookbolt Faceplate

• Overall Length: 6-7/8"
• Width: 1"
• Latch Hole: 2-5/16" x 5/8"
• Center of Top Mounting Hole to Top Of Plate: 5/8"
• Center of Bottom Mounting Hole to Bottom Of Plate: 5/8"
• Center to Center Bottom Mounting Holes : 2"

Beveled plates are handed. Handing Guide.

Select Plate Profile and Finish  TH1100-FP6-AL: Flat, Aluminum TH1100-FP6-DU: Flat, Dark Bronze TH1100-FP7-AL: L.H. Bevel, Aluminum TH1100-FP7-DU: L.H. Bevel, Dark Bronze TH1100-FP8-AL: R.H. Bevel, Aluminum TH1100-FP8-DU: R.H. Bevel, Dark Bronze TH1100-FP9-AL: Radius, Aluminum TH1100-FP9-DU: Radius, Dark Bronze TH1100-FP10-AL: Radius w/Weatherstrip, Aluminum Add  $3.44 TH1100-FP10-DU: Radius w/Weatherstrip, Dark Bronze Add  $3.44
