| Item No: |
BOM-LB4382-400 |
| List Price: |
$58.72 |
| Your Price: |
$58.72 |

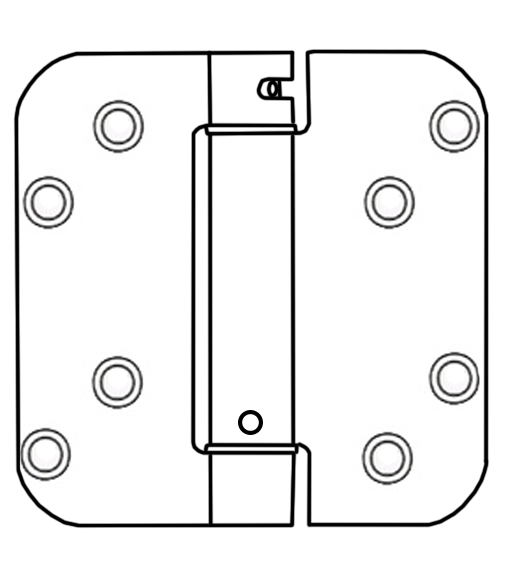

Bommer LB4382-400 4" x 4" x 5/8" Radius General Products Spring Hinge
Special door hinge template hole location designed to fit preparation of door and frame manufactured by General Products Door. Pivot point aligns with residential butt hinges gage .085 to .109
Easily adjustable Spring Tension. UL Listed for fire door applications. Fit General Products Frame. Packaged with mounting screws.
Specifications for Bommer LB4382-400 General Products Door Spring Hinge
- Hinge Material: Durable Steel
- Height: 4"
- Width: 4"
- Corner: 5/8" Radius
- Thickness: .096"
- Number of Holes: 8
- Wood Screws: #10 x 3/4"
- Machine Screws: #10-24 x 1/2"
- BHMA Certified Grade 1 for 1 million cycles.
- UL Listed R-4667 653M
- Adjustable Spring Torque
- Non-Handed
- Special Hole Template - General Products Doors
- Bommer LB4382-400 Dimensions Diagram (PDF)
Sold as a pair (2 Hinges).
** This item is Discontinued.
|
