| Item No: |
DEL-DASH95TP |
| List Price: |
$8.57 |
| Your Price: |
$6.43 |
Deltana DASH95TP, Top Door Pivot Hinge
Top pivot assembly for use with Deltana DASH95 Floor Spring Hinge. This non-load bearing door pivot is normally installed on the doors top in conjunction with a load bearing floor pivot assembly.

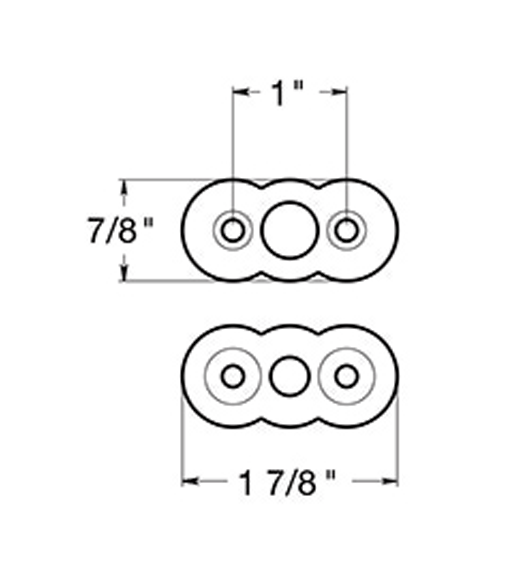

Specifications for DASH95TP Top Door Pivot
- Mounting Plate Length: 1-7/8"
- Mounting Plate Width: 7/8"
- Mounting Holes: 1" Center to Center, Both Plates
- Pivot Pin Diameter: .440"
- Pivot Pin Length: .610"
- Material: Steel
- Bushing Material: Nylon
- Finish: Zinc Plated
- Packaged with mounting screws.
*Sold Individually.
|
