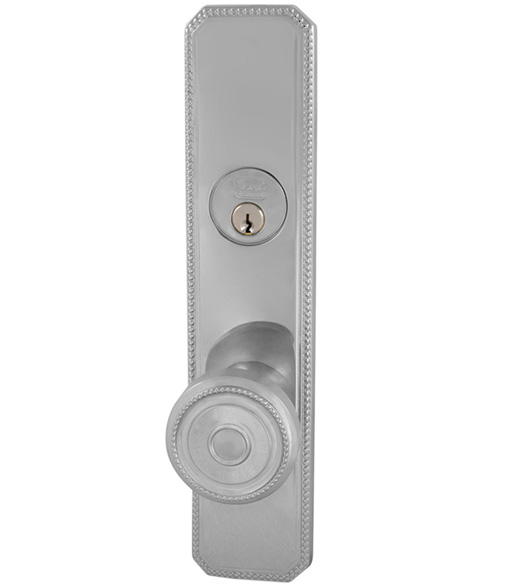

Omnia's victorian beaded pattern door knobset is for residential and commercial entry doors (for doors that require secure locking). It is built to withstand heavy use, combining precision engineering for security and durability with attractive design. The decorative beaded designed backplates feature a unique inside-to-outside mounting with screw-less outside plates. The Beaded Design Door Knob Entry Door Lockset is available in Shaded Bronze, Polished Brass, and Polished Chrome.

Also available matching Beaded Knobset

Features of the Beaded Entryset:

• Keyway: Schlage "C"
• Will fit standard 2-1/8" door preparations.
• Will fit narrow stiles. For Door with a 2-3⁄8” backset, stile width can be as narrow as 3-5⁄8”

Specifications for the Omnia D25430 Beaded Knob Lockset:

• Material: Brass
• Height: 10-5/8"
• Bore Hole Spacing (distance between deadbolt and knob latch): 3-5/8" or 5-1/2" Center to Center
• Doors Thickness: 1-3/4" - 2" Thick Doors (Contact Us if doors are thicker)
• Backset: 2-3/8" or 2-3/4"
• Deadbolt: Full 1" Throw, Solid Brass with saw-proof Insert.
• Strike: "T" strike
• Each set contains door knobs, backplates, latches, spindle, and all necessary screws and templates. Key functions are supplied with lock cylinder/s and turnpiece as applicable.
• Omnia Entry Lockset Dimensions & Specs (PDF)

Available Functions

• Full Dummy Set: Trim for non-working doors. It does not latch and does not lock. Usually used as matching trim for the non-working side of double doors.
• Single Cylinder: From the exterior, a knob operates the handleset latch and a key operates the deadbolt. From the inside, a thumbturn unlocks the deadbolt and a knob operates the latch.

Sold individually

Select Function - Important Ordering Guide D25430-PD: Full Dummy Set D25430-A: Single Cylinder Add  $178.40   Select Finish  US3: Polished Brass SB: Shaded Bronze US26: Polished Chrome   Select Backset - Important Ordering Guide 2-3/8" Backset 2-3/4" Backset   Select Latch to Deadbolt Spacing  5-1/2" Latch to Deadbolt Spacing 3-5/8" Latch to Deadbolt Spacing   Keying - Important Ordering Guide Non-Keyed (Dummy) I Only Ordered One Lock Keyed Different Keyed Alike Add  $5.50
