| Item No: |
GRA-GEOSGR |
| List Price: |
$815.00 |
| Your Price: |
$652.00 |

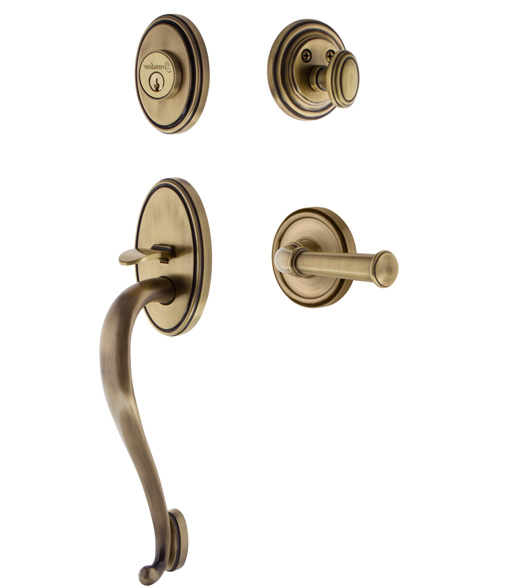

Grandeur GEOSGR, Georgetown Elegant Handleset
Very elegant styling makes the Georgetown Elegant Handleset universally appealing to a wide variety of office or home styles. Fashioned from solid, premium-grade brass it has a lifetime mechanical warranty. Grandeur door locks include features such as spring assisted inside trim to make them robust. This high quality solid forged brass entry set includes a high security deadbolt. This handleset fits doors 1-3/4" to 2-1/4" thick with a 2-3/8" or 2-3/4" backset. Available in dummy or single cylinder handlesets in a wide array of finishes so you'll find exactly what fits your needs.
Click here to see the entire Grandeur - Grandeur Georgetown Series
Features of the Grandeur Georgetown Elegant Handleset:
- Made out of solid forged brass.
- One inch throw deadbolt.
- Lifetime Mechanical Warranty
- 10 Year Finish Warranty
Specifications of the Georgetown Elegant Handleset:
- Exterior Deadbolt Height: 3.57"
- Exterior Deadbolt Width: 2.65"
- Exterior Top Height: 4.87"
- Exterior Top Width: 2.74"
- Exterior Bottom Height: 2.02"
- Exterior Bottom Width: 1.02"
- Exterior Overall Height: 17.25"
- Exterior Projection: 3.27"
- Door Thickness: Adjustable 1-3/4" to 2-1/4" with optional thick door kit for doors up to 2-1/2" thick.
- Backset: 2-3/8" or 2-3/4"
- Bore Hole Distance: minimum 4-3/8" center to center.
- Grandeur Handleset Exploded View (PDF)
- Georgetown S-Grip Handleset Dimensions (PDF)
When Selecting a Function:
Single Cylinder Handleset: From the exterior, a thumb piece operates the latch and a key operates the deadbolt. From the interior, the lever operates the latch and a thumbturn operates the deadbolt.
Dummy Handleset: This handleset is does not function--neither locking nor latching.
Note: Inside trim levers are handed. Click Here to determine left or right handed.
|
