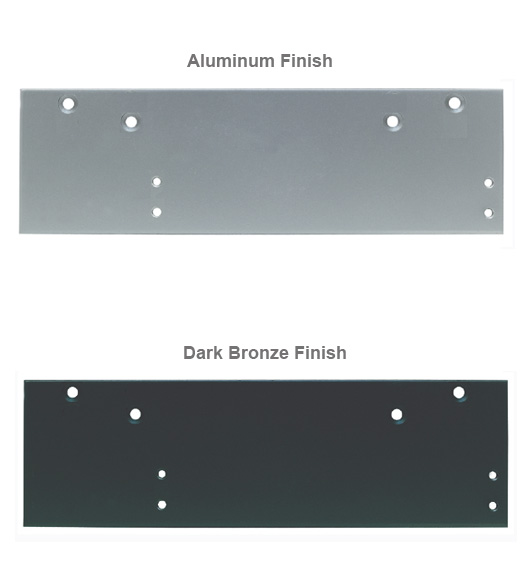

Door Closer Drop Plate
For use when mounting door closer on the Push Side of a door. When Parallel Arm mounting a Global TC4361 or LCN 1461 use when the top rail is less than 4-3/4" high.
Minimum top rail width is 1-1/4".
Also available: Pull Side Mounted Drop Plate
For use with Global Door Controls TC4361, LCN 1461 or any door closer with a 7-1/2 " x 1" mounting hole pattern.

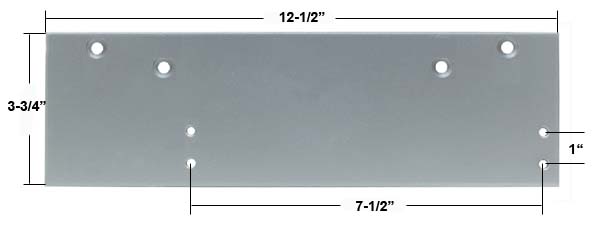

Specifications: for Global DP-4361-18PA Drop Plate
- Total Length: 12-1/2"
- Total Height: 3-3/4"
- Thickness: 3/16"
- Material: Steel
- Horizontal Mounting Holes: 7-1/2"
- Vertical Mounting Holes: 1"
- Packaged with installation screws
*Sold Individually.
|
