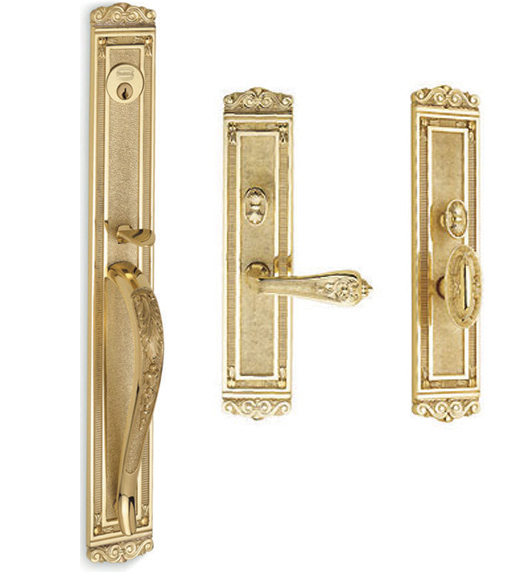

The beautiful design of the Westhampton handleset may give the impression that it is all looks and no strength but since it is made by Omnia, that is definitely not the case. Behind the embellished curved handle and rich details is a United States made Mortise Lock. The handleset plates are flush mounting to both enhance the appearance and provide protection against tampering with the cylinder.

Each set contains door levers, backplates, mortise latchset, spindle, and all necessary screws and templates. Key functions are supplied with lock cylinder/s and turnpiece as applicable.

Also Available: Matching Lockset

Features of the Westhampton Entry Handleset:

• Tough, non rusting materials used throughout.
• Mortise case is heavy wrought steel with zinc dichromate finish for corrosion resistance.
• Deadbolt: Full 1" solid brass throw with saw-proof insert.
• Adjustable armored steel front for beveled conditions.
• Solid brass curved lip strike: 4-7/8" high by 11/4" wide with a 11/4" lip to center. Finished to match trim. Dust box shipped with set.
• The Omnia Max Brass Finish is guaranteed never to tarnish even in extreme elements. Especially recommended for harsh environments such as salty air.

Specifications of the Omnia Westhampton Handlseset:

• 1-3/4" door thickness standard.
• Available with either 2-1/2" or 2-3/4" backsets.
• Outside Handle Plate Length: 19"
• Outside Handle Plate Projection: 3"
• Inside Plate Length: 11-1/4"

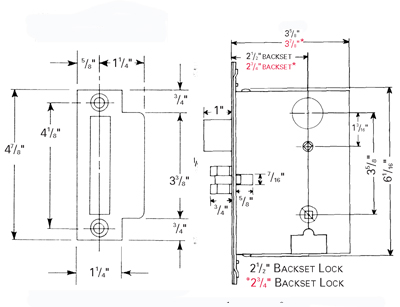

• Omnia Mortise Lockset Dimensions (PDF)

When Selecting a Function:

• Standard: Latchbolt operates by knob or lever on the inside. The outside is operated by a thumbpiece outside. Deadbolt activated by key outside and turnpiece inside.
• Panic Proof: Latchbolt operates by knob or lever on the inside and a thumbpiece on the outside. Deadbolt activated by key outside and turnpiece inside. Turning of inside knob or lever will retract both dead-bolt and latchbolt at the same time.
• Double Cylinder: Latchbolt operates by knob or lever on the inside. The outside is operated by a thumbpiece. Deadbolt activated only by key on both the inside and the outside.

The inside trim will match the handleset finish.

Select Function - Important Ordering Guide A - Standard F - Panic Proof Add  $5.25 AC - Double Cylinder Add  $7.50   Select Finish  US3 - Polished Brass SB - Shaded Bronze Add  $42.75 US15 - Satin Nickel Add  $100.50 MB - Max Brass Add  $527.25   Select Backset - Important Ordering Guide 2-1/2" Backset 2-3/4" Backset   Select Door Handing & Door Swing - Important Ordering Guide LHR: Left Hand Door, Out-swing LH: Left Hand Door, In-swing RHR: Right Hand Door, Out-swing RH: Right Hand Door, In-swing   Select Inside Trim    252 - Lever   229 - Lever (Only Available in Satin Nickel Finish)   294 - Knob   232 - Knob (Only Available in Satin Nickel Finish)   Keying - Important Ordering Guide I Only Ordered One Keyed Different Keyed Alike Add  $5.50
Note: This item is either Special Order or has been Discontinued. Please Contact Us.
Quantity
