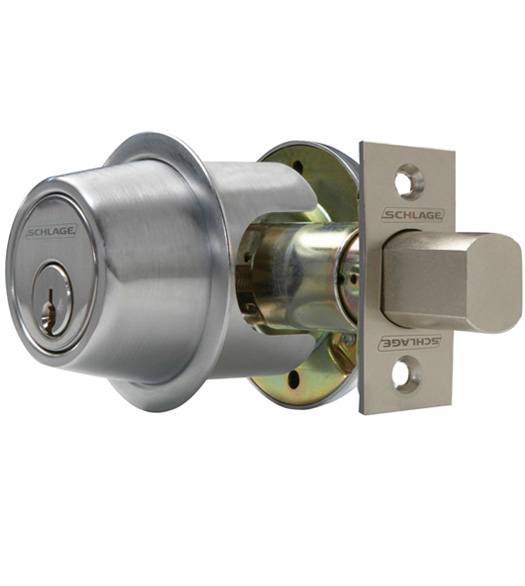

This ANSI Grade 2 Classroom Deadbolt is made for mid-level use. The inside thumb turn only retracts the bolt while, from the outside, the bolt can be thrown or retracted by the use of a key. It is adjustable for 2-3/8" or 2-3/4" backsets. Good for doors 1-3/8" through 1-3/4" thick. Built tough, it has a metal dust box reinforcer with three 3" screws. Available in 5 finishes.

Classroom Deadbolt Lock Deadbolt thrown or retracted by key outside. Inside turn unit will retract bolt only. Bolt automatically deadlocks when fully thrown.

Features of the Schlage B563P Classroom Deadbolt:

• ADA compliant.
• Will fit standard door preparations.
• 1" wrought metal trim ring reinforced with security insert.
• Metal dust box reinforcer with three 3" screws.
• 6-pin C123 keyway.
• Packaged with 2 keys.
• NASI A156.5, 2001, Grade 2.

Specifications of the Schlage B563P Classroom Deadbolt:

• Backset: adjustable for either 2-3/8" or 2-3/4"
• Door Thickness Range: 1-3/8" - 1-3/4"
• Strike: 1-1/8" x 2-3/4", square corner, box
• Deadbolt: 1" x 2-1/4", square corner faceplate, 1" housing diameter, 1" throw

Select Finish  626: Satin Chrome 605: Bright Brass Add  $4.80 619: Satin Nickel Add  $4.80 643e: Aged Bronze Add  $4.80 613: Oil Rubbed Bronze Add  $12.80   Keying - Important Ordering Guide I Only Ordered One Keyed Different Keyed Alike Add  $5.50
Quantity
