| Item No: |
BAL-5106 |
| List Price: |
$197.00 |
| Your Price: |
$156.99 |

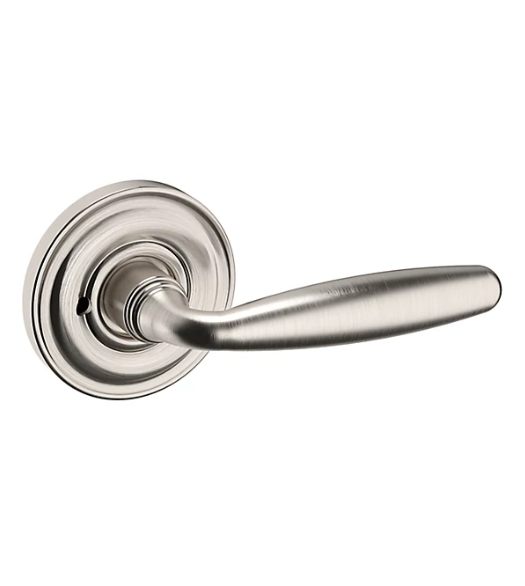

Baldwin Estates Collection 5106 Lever
The timelessness of Baldwin's 5106 lever makes it the perfect choice for almost any decor: traditional, contemporary, old world, or chic. Its ability to transition from one decor to another means that it could look good in every room of your house; and even if the room's decor changes, you won't have to change the lever to match which is good because Baldwin's lifetime mechanical warranty means that this leverset will surely be around for a long time. This leverset will fit 1-3/8 inch and 1-3/4 inch door thicknesses with an optional backset for 2-3/8 inches or 2-3/4 inches.
Features of the Baldwin 5106 Timeless Leverset:
- Accessibility Code (ADA) A117.1
- Concealed mounting to hide unsightly installation screws.
- Forged from solid brass for maximum strength and durability.
- 28 degree latch rotation
- Heavy duty latch bolts springs.
- Latches are reversible for all door conditions.
- Latches include standard full lip strike.
Specifications of the Solid Brass Timeless Lever:
- Rose Diameter: 2-5/8"
- Lever Length: 3-3/4"
- Overall Projection: 2-5/8"
- Backset: choose either 2-3/8" or 2-3/4"
- Door Thickness: adjustable for 1-3/8" and 1-3/4"
When Selecting a Function:
- Half Dummy: A surfaced mounted, non-working, smooth lever. Non-locking and non-latching trim for one side of door. This inactive pull is usually used to match trim.
- Full Dummy: A surfaced mounted, non-working, smooth lever. Non-locking and non-latching trim for both sides of door. These inactive pulls are usually used to match trim.
- Passage (hall or closet): Latches but does not lock. The latch is activated by turning the either of the two levers.
- Privacy (bedroom or bathroom): Latches and can be locked. Can be locked from the inside with a push-button located on rosette. An emergency release function allows the lever to automatically unlock when it is turned from the inside.
The Half Dummy function is handed. Click Here to Determine Handing. All other lever functions are non-handed.
|
