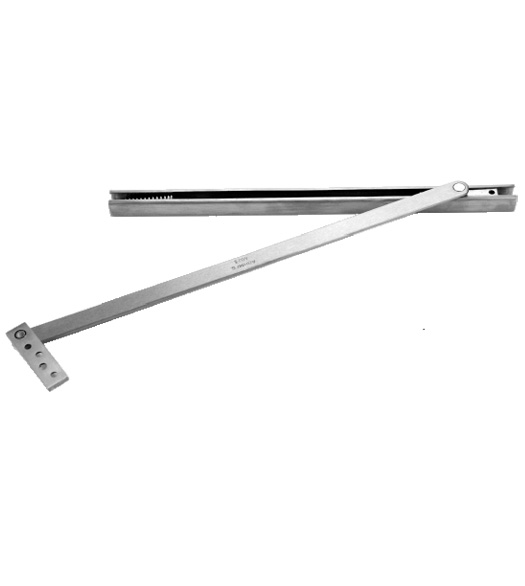

Brushed stainless steel concealed overhead door stop. Track mounts Concealed (hidden in top of door); to a metal doors top rail or mortised top of wood doors. An internal spring cushions the door opening.

Also available: Don-Jo 3023 Overhead Concealed Door Stop.

For interior single or double acting doors. Non-handed.

Specifications for the Don-Jo 3024-630 Overhead Concealed Door Stop:

• Track Length: 16-3/4"
• Track Width: 3/4"
• Maximum Door Opening Distance: 110 Degrees
• Fasteners: Two (2) #10 x 1-1/2" machine screws, Four (4) #10-32 x 1/2" machine screws, Four (4) #10 1-1/2" wood screws
• Non-Handed
• Finish: Brushed Stainless Steel

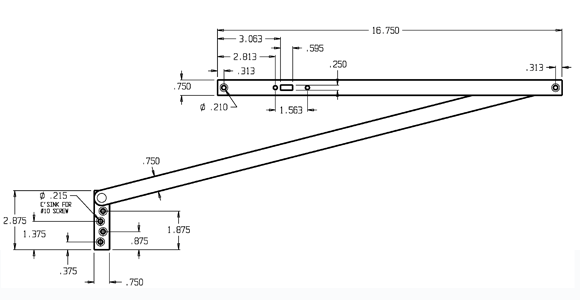

• Don-Jo 3024 Dimensions (PDF)

For use on 36" - 48" wide doors.
*Measure your door opening

• Standard Butt Hinges: Door opening width 35" - 48"
• Center Hung Pivot: Door opening width 38" - 48"

*Sold Individually.
