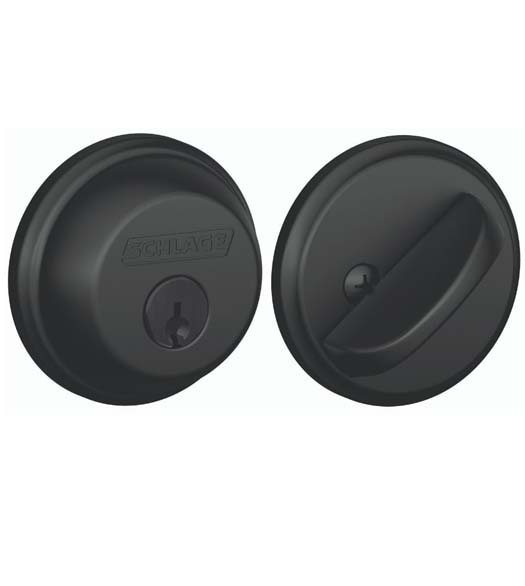

Shield your home with our robust Extra Thick Door Deadbolt. Engineered to withstand forceful entry, this lock is perfect for doors or gates ranging from 2-1/4" - 4" thick. As an ANSI Grade 1 deadbolt, it offers the highest level of residential security. It has an adjustable latch to fit 2-3/8 inch or 2-3/4 inch backsets and is operated by a key on the outside of the door and by a thumbturn on the inside. Available in 9 finishes.

Also available: 2-1/4 Inch Thick Door Deadbolt and Thick Door Locks.

These deadbolts are ANSI Grade 1-- toughest ANSI grade available. Sturdy construction paired with innovative features that provide added control, security and peace of mind.

Key Features of DB60/61073 Thick Door Deadbolt:

• Maximum Protection: Designed for doors 2-1/4" to 4" thick.
• Precision Fit: Adjustable latch for 2-3/8" or 2-3/4" backsets.
• Simple Installation: Fits 2-1/8" and 1-1/2" Bore Hole.
• Certifications: ANSI A156.5, 2001, Grade 1 auxiliary lock.
• Easy Operation: Keyed exterior, thumbturn interior.
• Unyielding Strength: 1" deadbolt with hardened steel core and reinforced strike.
• Advanced Security: Anti-pick shield and solid brass cylinder and trim.
• Convenience: Comes packaged with two keys.
• Installation Instructions (PDF)

Specifications of the DB60/61073 Thick Door Deadbolt Lock:

• Housing Diameter: 2.420"
• Strike Width: 1-1/8"
• Strike Length: 2-3/4"
• Cylinder: 5-pin, Schlage C Keyway

Single Cylinder Deadbolt: Deadbolt thrown or retracted by key from the outside and by turn unit on the inside. Bolt automatically deadlocks when fully thrown.

Note: For use with 2-1/4" to 4" Thick Doors. For standard 1-3/4" thick doors use Single Cylinder Deadbolt

Upgrade your home's defense with our Extra Thick Door Deadbolt.
