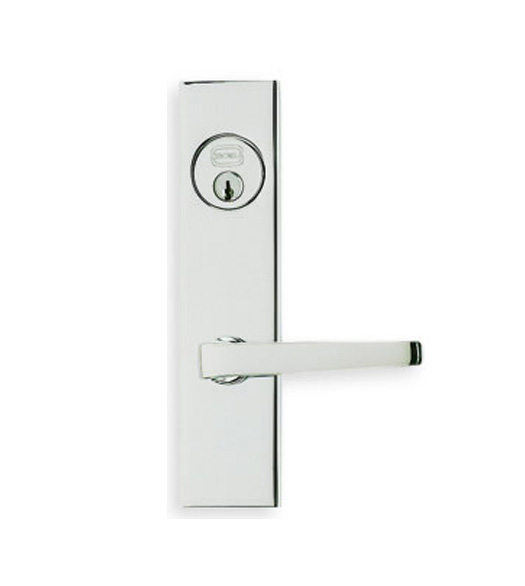

Simplistic in design, Omnia's 64036 Narrow Backset Lockset has a modern minimalist appeal. Made out of solid brass, this contemporary handleset is available in brass, polished chrome, and satin chrome finishes. It is offered in several different functions including single cylinder, passage, and double cylinder entry. It is designed to fit doors with backsets of either 1-1/2" or 2".

Also Available Matching Modern Chic Leverset

Features of the Narrow Backset Handleset With Chic Lever:

• Schlage "C" keyway (for key functions).
• ADA compliant.
• Made of solid brass with a heavy gauge plated steel case.
• Solid brass 1/2" lachbolt and 1" deadbolt

Specifications of the Contemporary Mortise Lockset:

• Backplate Length: 8-1/4"
• Backplate Width: 2"
• Backplate Projection: 1/4"
• Lever Length: 4-1/2"
• Door Thickness: 1-3/4" or 2"
• Backset: either 1-1/2" or 2"
• Strike: solid brass curved lip strike: 4-7/8" x 1-1/4" x lip 1-1/4"
• Deadbolt: 1/2" x 3/4" x 1"
• Latchbolt: 1/2" x 1" x 1/2"
• Case:
  • 1-1/2" backset: 6-1/16" x 2-5/16" x 3/4"
  • 2" backset: 6-1/16" x 2-13/16" x 3/4"
• Narrow Backset Mortise Lock Specification Diagram

When Selecting a Function:

• Dummy Pair: Does not latch or lock. This non-functional handleset is stationary on both sides of the door. For use as a pull or to match trim. Complete set - 2 levers, 2 backplates, and mounting screws.
• Passage (Hall / Closet): The latchbolt is thrown and retracted by a lever on either side of the door. Does not lock. Complete set - 2 levers, 2 backplates, strike plate, latchbolt, dust box, and mounting screws.
• Privacy (Bathroom / Bedroom): The latchbolt is thrown and retraced by a lever on either side of the door. The deadbolt is thrown and retracted by a turnpiece on the interior. An emergency release hole is on plate. Not suitable for use as a security lock. Complete set - 2 levers, 2 backplates, strike plate, latchbolt, dust box, emergency release tool, and mounting screws.
• Entry Single Cylinder: The latchbolt is thrown and retracted by a lever on both the interior and the exterior. The deadbolt is operated by a key from the exterior and by a turnpiece from the interior. No locking rocker switch; hubs always open. Complete set - 2 levers, 2 backplates, mortise lock, mortise cylinder, lock faceplate, strike plate, latchbolt, dust box, two keys, and mounting screws.
• Entry Double Cylinder: The latchbolt is thrown and retracted by a lever on both the interior and the exterior. The deadbolt is operated by a key from both the exterior and the interior. No locking rocker switch; hubs always open. Complete set - 2 levers, 2 backplates, mortise lock, mortise cylinder, lock faceplate, strike plate, latchbolt, dust box, two keys, and mounting screws.
• Standard Single Cylinder: The latchbolt is thrown and retracted by a lever on both the interior and the exterior except when exterior lever is locked by the rocker switch in the front, then the latchbolt is operated by a key on the exterior and the lever on the interior. The deadbolt is operated by a key from the exterior and by a turnpiece from the interior. Complete set - 2 levers, 2 backplates, mortise lock, mortise cylinder, lock faceplate, strike plate, latchbolt, dust box, two keys, and mounting screws.
• Standard Double Cylinder: The latchbolt is thrown and retracted by a lever on both the interior and the exterior except when exterior lever is locked by the rocker switch in the front, then the latchbolt is operated by a key on the exterior and the lever on the interior. The deadbolt is operated by a key from both the exterior and the interior. Complete set - 2 levers, 2 backplates, mortise lock, mortise cylinder, lock faceplate, strike plate, latchbolt, dust box, two keys, and mounting screws.

Select Function - Important Ordering Guide PD: Dummy Pair N: Passage Add  $377.60 L: Privacy Add  $467.20 B: Entry Single Cylinder Add  $572.80 BAC: Entry Double Cylinder Add  $593.60 A: Standard Single Cylinder Add  $572.80 AC: Standard Single Cylinder Add  $593.60   Select Finish  US3: Polished Brass US26: Polished Chrome Add  $18.75 US15: Satin Nickel Add  $69.75 US10B: Oil Rubbed Bronze Add  $69.75   Select Door Thickness  1-3/4" Door Thickness 2" Door Thickness   Select Backset - Important Ordering Guide 1-1/2" Backset 2" Backset   Select Door Handing & Door Swing - Important Ordering Guide Left Hand Door, Out-Swing Left Hand Door, In-Swing Right Hand Door, Out-Swing Right Hand Door, In-Swing   Keying - Important Ordering Guide Non Key Item I Only Ordered One Lock Keyed Different Keyed Alike Add  $5.50
