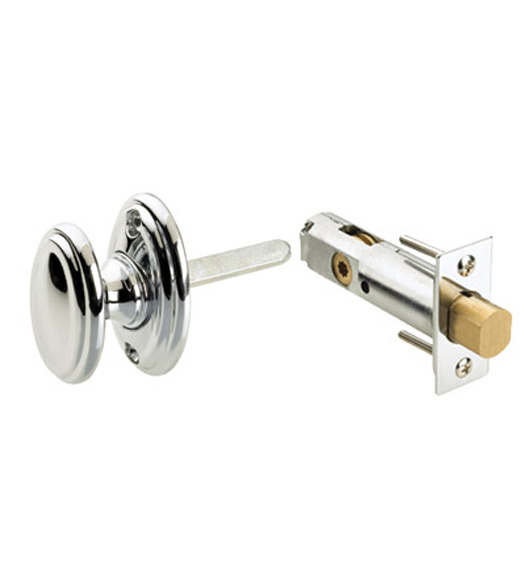

Omnia's 9163 Privacy Bolt features the classic beauty that is iconic of traditional decor--simple yet timelessly elegant. Mortise privacy bolts are most often used on bedrooms and bathrooms. This bolt is not meant for security purposes as, in case of emergencies, the bolt can be retracted from the exterior side of the door through the emergency release rose. For doors 1-3/8" to 2-1/4" thick with either 2-3/8" or 2-3/4" backsets.

Privacy Bolt (Bathroom and Bedroom): Locks but has access to unlock from the outside via emergency turn. Privacy locks do not offer security, they offer privacy.

Specifications for the Omnia 9163, Traditional Beveled Privacy Door Bolt:

• Material: Solid Brass
• Rose Height (both interior and exterior): 1-9/16"
• Rose Width (both interior and exterior): 1-1/16"
• Interior Projection: 1-1/16"
• Exterior Projection: 3/8"
• Faceplate Height: 2-1/4"
• Faceplate Width: 1"
• Strike Plate Height: 2-3/4"
• Strike Plate Width: 1-1/8"
• Bolt: 9/16" throw solid brass bolt
• Door Thickness: 1-3/8" - 2-1/4"
• Backset: either 2-3/8" or 2-3/4"
• Includes: faceplate, strike, dustbox, bolt, interior rose with turnpiece, and emergency release exterior rose.

Will not cover a 2-1/8" pre-drilled door borehole.

Select Finish  US3A: Unlacquered Brass US3: Polished Brass US26: Polished Chrome US5A: Unlacquered Antique Bronze Add  $6.40 US14: Polished Nickel Add  $6.40 US15: Satin Nickel Add  $6.40 US10B: Oil-Rubbed Bronze Add  $6.40   Select Backset - Important Ordering Guide OMN-9163/238: 2-3/8" Backset OMN-9163/234: 2-3/4" Backset
