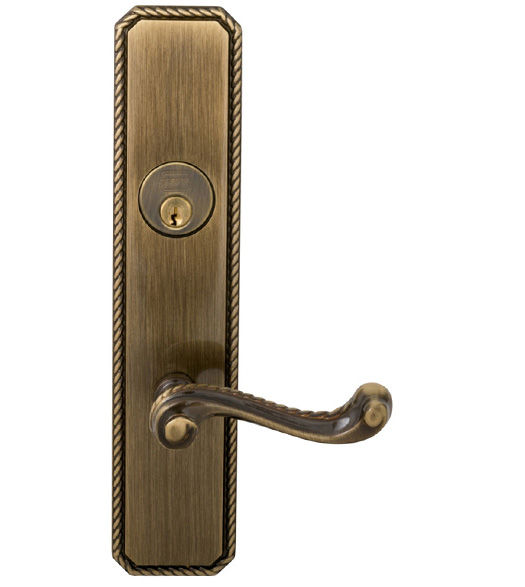

The Rope Pattern with Scroll Lever Mortise Lockset features elegant rope detailing that is a timeless classic in home decor. The Rope Pattern Mortise Lockset is available in so many finishes, you'll be able to find one that suits your tastes. Choose from a wide selection of functions including single cylinder, privacy, and panic proof. The Mortise Rope Entryset is for both residential and commercial use.

Also available for standard pre-drilled doors: Omnia D24570

Features of the Classic Rope Lockset:

• Keyway: Schlage "C"
• Tough, non rusting materials used throughout.
• Mortise case is heavy wrought steel with zinc dichromate finish for corrosion resistance.
• Deadbolt: Full 1" Throw, Solid Brass with Saw-proof Insert.
• UL Listed 3 Hour
• ANSI A156.13.2005, Grade 1 Lock

Specifications for Omnia 24570 Rope Mortise Entryset:

• Material: Brass
• Backplate Height: 10-5/8"
• Backplate Width: 2-3/8"
• Lever Length: 4-1/2"
• Doors Thickness: Optional, 1-3/4" - 2-1/4" Thick Doors (Contact Us if doors are thicker)
• Backset: 2-1/2" or 2-3/4"
• 2-1⁄2” b.s.: with 3-7⁄8” minimum stile
• 2-3⁄4” b.s.: with 4-1⁄2” minimum stile
• Front: Adjustable armored steel front, with 8" x 1-1/4" solid brass faceplate.
• Strike: Solid brass curved lip strike.4-7⁄8” x 1-1⁄4” x lip 1-1⁄4” to center.
• Omnia Mortise Lockset Dimensions and Specifications (PDF)

When Selecting a Function:

• Dummy Pair: Stationary both sides of door. Fixed levers, non-functioning. Used as door pulls or to match trim.
• Passage (Hall / Closet): The latch is operated by a lever from either side.
• Privacy (Bathroom / Bedroom): The latch operates by lever from either side. Deadbolt is operated by a turnpiece inside and emergency key outside. Turning inside lever will retract both deadbolt and latchbolt at the same time.
• Single Cylinder Entry: Latchbolt operates by lever from either side except when outside trim is locked by stop-button; then opens by key outside, by lever inside. Deadbolt activated by key outside and by turnpiece inside.
• Double Cylinder Entry: Latchbolt operates by lever from either side except when outside trim is locked by stop-button; then opens by key outside, by lever inside. Deadbolt activated only by key from either side.
• Panic Proof Entry: Latchbolt operates by lever from either side except when outside trim is locked by stop-button. Deadbolt activated by key outside and by turnpiece inside. Turning inside lever will retract both deadbolt and latchbolt at the same time.
• Storeroom: Latchbolt operates by lever inside and by key outside. The outside lever is rigid. Auxiliary latchbolt deadlocks latchbolt.

Select Function - Important Ordering Guide   24570-PD: Dummy Pair   24570-N: Passage (Hall / Closet) Add  $243.00   24570-L: Privacy (Bathroom / Bedroom) Add  $258.75   24570-A: Single Cylinder Entry Add  $330.00   24570-AC: Double Cylinder Entry Add  $330.00   24570-F: Panic Proof Entry Add  $330.00   24570-EW: Storeroom Add  $330.00   Select Finish  US3: Polished Brass US3A: Unlacquered Brass US5A: Unlacquered Antique Bronze SB: Shaded Bronze US26: Polished Chrome US14: Polished Nickel Add  $11.25 US15: Satin Nickel Add  $11.25 US10B: Oil-Rubbed Bronze Add  $11.25   Select Door Thickness  1-3/4" Door Thickness 2" Door Thickness 2-1/4" Door Thickness   Select Backset - Important Ordering Guide 2-1/2" Backset 2-3/4" Backset   Select Door Handing & Door Swing - Important Ordering Guide LHR: Left Hand Door, Out-swing LH: Left Hand Door, In-swing RHR: Right Hand Door, Out-swing RH: Right Hand Door, In-swing   Keying - Important Ordering Guide Non-Keyed (Dummy, Passage, and Privacy) I Only Ordered One Lock Keyed Different Keyed Alike Add  $5.50
