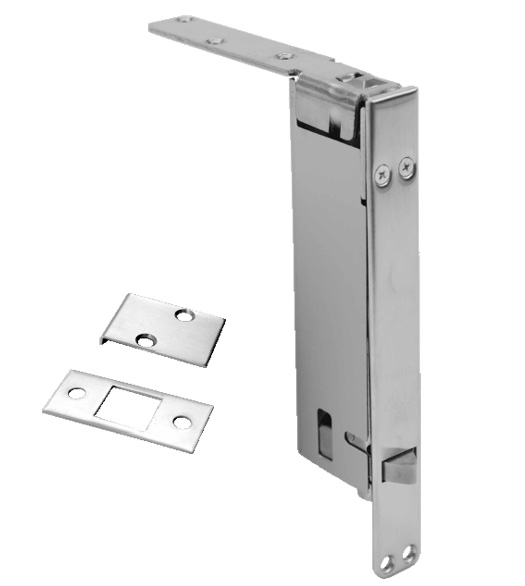

Self latching automatic flush bolts for use on fire rated wood doors (labeled B, C, D & E). Fits standard ANSI prep for wood doors. Conform to UL, 10C and UBC 7-2-1997. ADA compliant, requires only 5 lbs. of force.

Fully automatic flush bolts - inactive door is latched by both both top and bottom flush bolts when active door closes. Both flush bolts retract when active door opens.

Packaged in pairs - includes both top and bottom flush door bolts. Also includes strike plates, guide plates and installation screws. Available in Polished Brass, Oil Rubbed Bronze or Brushed Chrome finishes.

Specifications for the Don-Jo 1562 Automatic Flush Bolts:

• Face Plate Width: 1"
• Face Plate Height: 8-1/2"
• Material: Brass
• Frame Strike Plate Width: 15/16"
• Frame Strike Plate Length: 2-1/4"
• Guide Plate Width: 1"
• Guide Plate Length: 6-1/16"
• Bolt Diameter: 1/2"
• Bolt Throw: 3/4"
• Bolt Vertical Adjustment: 3/4"
• Non Handed
• UL Listed and Rated
• ANSI A156.3 Type 25
• ADA Compliant

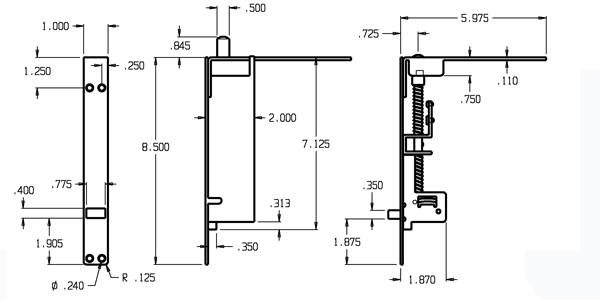

• Don-Jo 1562 Dimensions (PDF)

*Sold in Pairs (2 Flush Bolts with installation hardware).
