| Item No: |
DJO-HWBB94545-630 |
| List Price: |
$50.82 |
| Your Price: |
$40.66 |

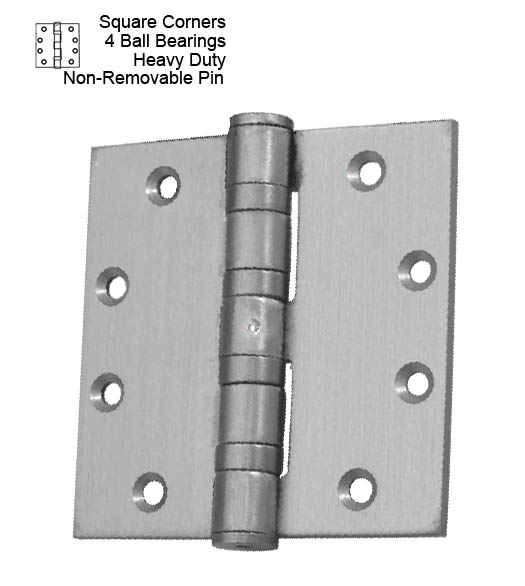

4 1/2" x 4 1/2" x Square Corners Heavy Duty Commercial Door Hinge
Extra heavy duty (0.180" thick) stainless steel commercial door hinge with 4 ball bearings and Non-Removable Pin. Conforms to ANSI A5111
Fitted with a high grade, Non-Removable, rust resistant, stainless steel pin for security.
Utilizes template screw hole pattern for use with wood or metal doors.
Specifications for the Don-Jo HWBB94545-630 Stainless Steel Hinge:
- Height: 4-1/2"
- Width: 4-1/2"
- Corners: Square
- Thickness: 0.180" (Extra Heavy Duty)
- 4 Ball Bearings for Smooth Action
- Non-Removable Hinge Pin
- Standard Template Hole Pattern
- Stainless Steel Hinge Pin
- Wood Screws: #12 x 1-1/4"
- Machine Screws: #12-24 x 1/2"
- Conforms to ANSI A5111
- Material: Stainless Steel
- Finish: Brushed Stainless Steel

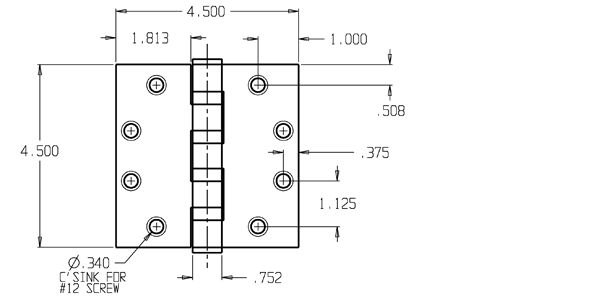

- Don-Jo HWBB94545-630 Dimensions (PDF)
Package with Stainless Steel machine screws and wood screws. For use with heavy metal or wood doors.
*Sold Individually
|
