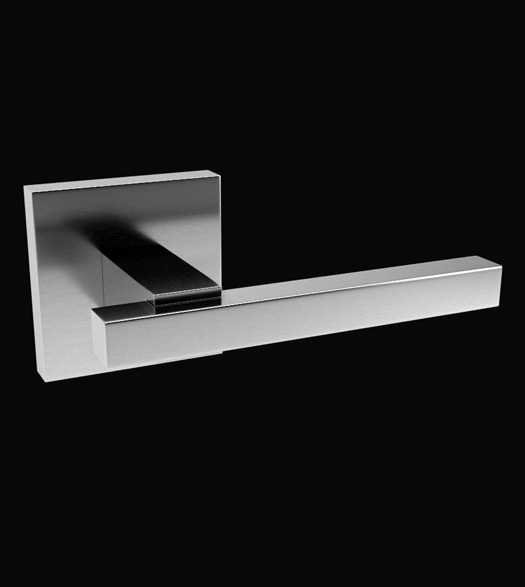

Made by AHI, the SIG-116 Square Lever with Square Rose is the perfect example of modern sophistication. The sharp lines and clean angles of this stainless steel leverset is the perfect way to add a contemporary touch to modern spaces. The lever is all 304 grade stainless steel, making it resistant to knocks, scratches and abrasions. It will fit standard 2-1/8" door cut outs. Available for either 2-3/8" or 2-3/4" backsets. Adjustable for door thicknesses from 1-3/8" to 2". Durable in appearance and function even after many years of use.

Features of the Stainless Steel Square Leverset:

• For residential or commercial applications
• Fits standard door cut outs (2-1/8" pre-drilled doors)
• Field reversible tubular latch
• Premium latch requires only 28° rotation to retract latchbolt
• Meets standards of the Americans with Disabilities Act (ADA)

Specifications of the SIG116/204 Stainless Steel Lever With Square Rose:

• Material: 304 Stainless Steel
• Finish: Satin Stainless Steel
• Lever Length: 5-1/4"
• Lever Thickness: 9/16"
• Projection: 1-15/16"
• Spindle Width: 0.31" (8 mm)
• Rose Length: 2-1/2" (64 mm) squared
• Rose Thickness: 0.35" (9 mm)
• Door Thickness: adjustable for 1-3/8" to 2"
• Backset: 2-3/8" or 2-3/4"

When Selecting a Function:

• Single Dummy: For use as a door pull or to match trim. Trim is on one side of door. Lever is surface mounted (mounting plate screws to the doors face).
• Double Dummy: No door latch. Door levers on both sides of the door. For use with a standard 2-1/8" bore hole pre-drilled door.
• Passage (hall or closet): For doors that don't need locking. Latch operates from either side of door.
• Privacy (bedroom or bathroom): For doors that could need privacy locking. Latch operates from either side. Push button on interior rose engages privacy; emergency release hole is on exterior rose. Turning inside lever will release privacy push button and retract the door latch.

Note: Single Dummy is Handed. All other functions are non-handed. Handing Guide

Select Function - Important Ordering Guide SD-RH: Single Dummy (right handing) SD-LH: Single Dummy (left handing) DD: Double Dummy Add  $24.50 PA: Passage (hall or closet) Add  $35.00 PV: Privacy (bedroom or bathroom) Add  $42.00   Select Backset - Important Ordering Guide 2-3/8" Backset 2-3/4" Backset
