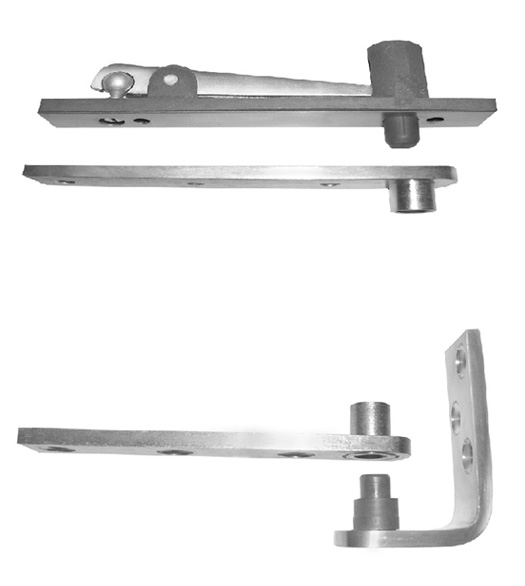

These jamb mounted center hung door pivots are engineered for durability on interior doors weighing up to 200 pounds. Set includes ABH 0320 top pivot and bottom pivot with installation hardware.

The bottom door pivot is mortised into the door jamb. Top pivot is mortised into the door's header. These jamb mounted ABH Door Pivots are Made in the USA to insure high quality.

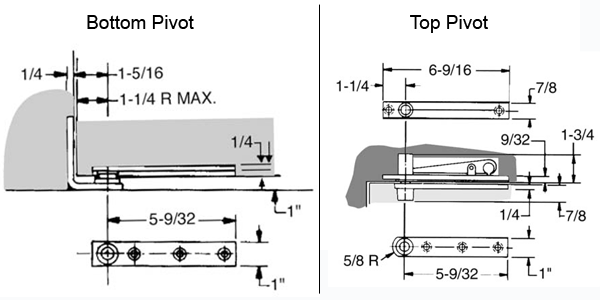

Specifications: for ABH 0127 Center Hung Pivot Hinge

• Door Weight: Up to 200 lbs
• Interior Door Size: Up to 3'6" x 8'6"
• Hinge Type: Full Mortise, Center Hung
• Bottom Pivot: Jamb Mounted
• Top Pivot: Walking beam type hinge
• Dress plate provided for jamb portion
• Non-Handed, Reversible
• BHMA/ANSI C07042
• ABH 0127 Installation Instructions (PDF)
• ABH 0127 Installation Template (PDF)

*Sold Individually



Select Finish  0127-US32D: Satin Stainless Steel 0127-US10B: Oil Rubbed Bronze Add  $44.00 0127-US3: Polished Brass Add  $55.20 0127-US32: Polished Stainless Steel Add  $55.20 0127-US4: Satin Brass Add  $44.00 0127-S1: Painted Aluminum Add  $44.00 0127-S2: Painted Brass Add  $44.00 0127-S5: Painted Dark Bronze Add  $44.00
