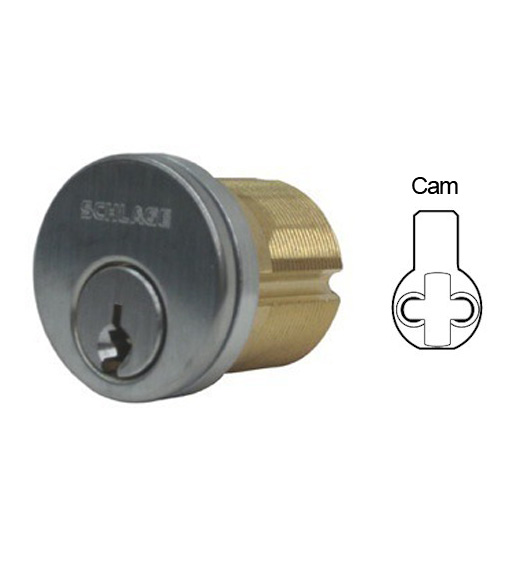

1-1/8" length mortise cylinder with "Standard Yale" style cam. Used on mortise locks and panic device for dogging and alarm control.

For use with DETEX V40EB62836 Alarm Exit Device, PDQ 6200R-AL Alarm Exit Device, Monarch and Von Duprin panic devices.

Specifications for the Schlage 1-1/8" Mortise Cylinder:

• Mortise Cylinder Length: 1-1/8"
• Cam: Standard Yale Style
• Cylinder Diameter: Standard 1-5/32" Diameter
• Cylinder: 6-pin Schlage "C" Keyway
• Available Finishes: Brushed Chrome, Bright Brass or Oil Rubbed Bronze

Select Finish  626-118: Brushed Chrome 605-118: Bright Brass 613-118: Oil Rubbed Bronze   Keying - Important Ordering Guide I only ordered one Keyed Different Keyed Alike Add  $5.50
Quantity	Click here to view Discount Price
