| Item No: |
BOM-LB4340-400 |
| List Price: |
$55.72 |
| Your Price: |
$55.72 |

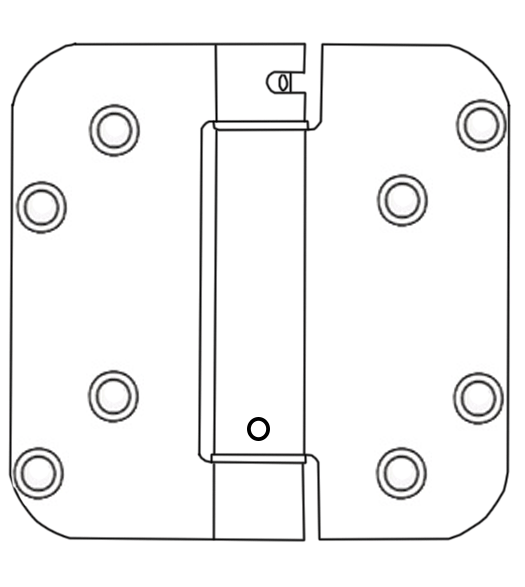

Bommer LB4340-400, 4" x 4" x 5/8" Radius Pease Door Spring Hinge
Special door hinge template hole location designed to fit preparation of door and frame manufactured by Pease Door (Evercloser by Pease Doors). Pivot point aligns with residential butt hinges gage .085 to .109
Easily adjustable Spring Tension. UL Listed for fire door applications. Fits Pease Door Frame. Packaged with mounting screws.
Specifications for Bommer LB4340-400 Pease Door Spring Hinge
- Hinge Material: Durable Steel
- Height: 4"
- Width: 4"
- Corner: 5/8" Radius
- Thickness: .096"
- Number of Holes: 8
- Wood Screws: #10 x 3/4"
- Machine Screws: #10-24 x 1/2"
- BHMA Certified Grade 1 for 1 million cycles.
- UL Listed R-4667 653M
- Adjustable Spring Torque
- Non-Handed
- Special Hole Template - Pease Doors
- Bommer LB4340-400 Dimensions Diagram (PDF)
Sold as a pair (2 Hinges).
** This item is Discontinued. See available Door Closer Hinges
|
