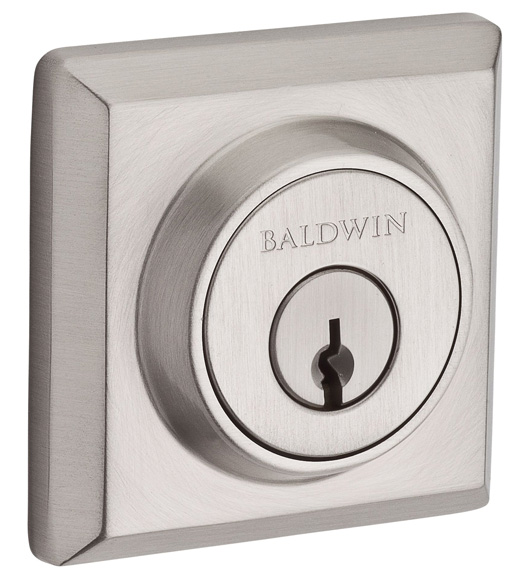

The Square Rose Deadbolt has a beveled edge that take some of the sharpness away and makes it a great choice for contemporary homes with a touch of the traditional. This grade 2 door lock is available as a single cylinder or a double cylinder. It will fit doors 1-3/4 inches to 2-1/2 inches thick with backsets of 2-3/8 inches or 2-3/8 inches. The traditional square deadbolt is backed by a lifetime mechanical warranty and a 25 year finish warranty. Choose from beautiful finishes.

Features of the Square Rose Deadbolt with Beveled Edge:

• Made out of solid forged brass.
• Baldwin 5 pin C keyway.
• 2-1/8" cross bore and 1" edge bore for latch.
• One inch throw deadbolt.
• Tested to exceed ANSI/BHMA Grade 2 Security.
• Warranty: 25 year finish warranty and a limited lifetime mechanical warranty.

Specifications of the Baldwin Reserve Square Deadbolt:

• Exterior Length: 2-3/5" square
• Exterior Projection: 3/4"
• Interior Length: 2-5/8" square
• Interior Projection, Single Cylinder: 1-7/16"
• Interior Projection, Double Cylinder: 3/4"
• Door Thickness Standard: 1-3/4" - 2"
• Door Thickness Optional: 1-3/8" - 1-3/4" or 2" - 2-1/2"
• Backset: Adjustable for 2-3/4" or 2-3/8"

When Selecting a Function:

• Single Cylinder: Deadbolt is operated by a thumbturn on the interior and a key from the exterior
• Double Cylinder: Deadbolt is operated by a key from both the interior and the exterior

Sold Individually

Select Function - Important Ordering Guide SC: Single Cylinder DC: Double Cylinder Add  $8.80   Select Finish  150: Satin Nickel 152: Matte Antique Nickel 260: Polished Chrome 003: Polished Brass PVD 112: Venetian Bronze 055: Polished Nickel PVD 044: Satin Brass PVD 190: Satin Black   Select Door Thickness  STD: 1-3/4" - 1-7/8" Door Thickness THK: 2" - 2-1/2" Door Thickness Add  $6.72 THN: 1-3/8" - 1-1/2" Door Thickness Add  $38.64   Keying - Important Ordering Guide I only ordered one. Keyed Different Keyed Alike Add  $5.50
