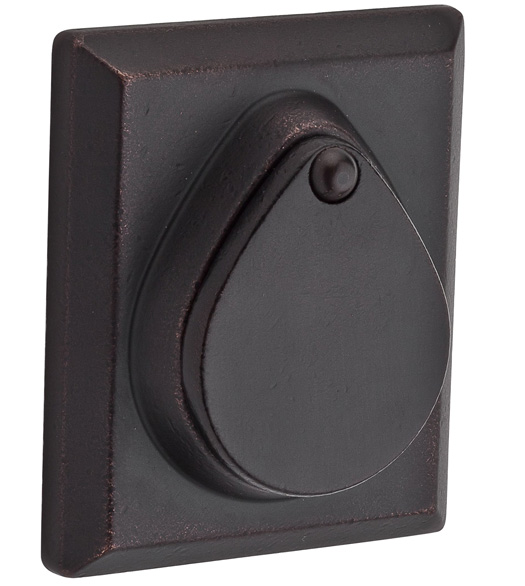

A front door lock with something more than the everyday plain style, the Rustic Square Deadbolt with Covered Cylinder is a beautiful example of contemporary design at its best. Choose from either a dark bronze or a white bronze finish. This deadbolt is available in both single cylinder and double cylinder functions. It is backed by the excellent quality for which Baldwin is known, with a 25 year finish warranty and a lifetime mechanical warranty. The Rustic Square deadbolt will fit 2-3/4 inch or 2-3/8 inch backsets on doors 1-3/4 inches to 2-1/2 inches thick.

Features of the Traditional Rectangular Covered Deadbolt:

• Made out of solid forged brass.
• Baldwin 5 pin C keyway.
• 2-1/8" cross bore and 1" edge bore for latch.
• One inch throw deadbolt.
• Tested to exceed ANSI/BHMA Grade 2 Security.
• Warranty: 25 year finish warranty and a limited lifetime mechanical warranty.

Specifications of the Baldwin Reserve Rustic Square Deadbolt:

• Exterior Width: 2-9/16"
• Exterior Length: 3-1/8"
• Exterior Projection: 1-1/16"
• Interior Length: 2-5/8" square
• Interior Projection, Single Cylinder: 1-7/16"
• Interior Projection, Double Cylinder: 1-1/16"
• Door Thickness: 1-3/4" - 2" standard with optional thick door kit for 2" - 2-1/2".
• Backset: Adjustable for 2-3/4" or 2-3/8"

When Selecting a Function:

• Single Cylinder: Deadbolt is operated by a thumbturn on the interior and a key from the exterior
• Double Cylinder: Deadbolt is operated by a key from both the interior and the exterior

Sold Individually

Select Function - Important Ordering Guide SC: Single Cylinder DC: Double Cylinder Add  $10.40   Select Finish  481: Dark Bronze 492: White Bronze   Select Door Thickness  STD: 1-3/4" - 2" Door Thickness THK: 2" - 2-1/2" Door Thickness Add  $7.20   Keying - Important Ordering Guide I only ordered one. Keyed Different Keyed Alike Add  $5.50
