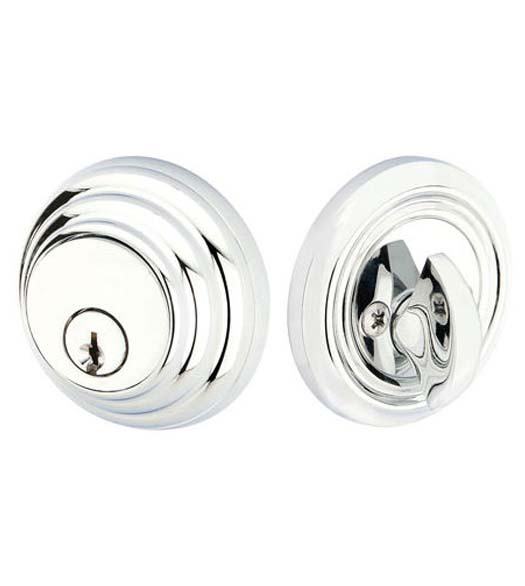

The Single Cylinder Low Profile Deadbolt made by Emtek has a mere 7/8 inch exterior projection and a 1-1/4 inch interior trim projection. It has a classic appearance that can transform from modern to traditional simply by selecting a finish. This easy to install single cylinder deadbolt will fit standard door hole preparations. This is a single cylinder deadbolt so the latch is thrown and retracted by a thumb turn on the interior and by a key from the exterior.

Single Cylinder: The deadbolt is thrown and retracted by a key from exterior and by a thumb turn from the interior

Features of the Modern Single Cylinder Deadbolt:

• Keyway: Schlage C
• Solid brass collar and rosette.
• Hardened steel bolt.
• Will fit standard 2-1/8" door preparations.

Specifications of the Emtek 8455 Single Cylinder Deadbolt:

• Exterior Trim Diameter with Exterior Ring: 2-1/2"
• Exterior Trim Diameter without Exterior Ring: 2-3/8"
• Exterior Trim Projection with Exterior Ring: 7/8”
• Exterior Trim Projection without Exterior Ring: 5/8”
• Interior Trim Diameter: 2-1/2"
• Interior Trim Projection: 1-1/4"
• Interior Trim Thickness: 5/16"
• Door Thickness: 1-3/8" to 3-1/4"
• Backset: 2-3/8" or 2-3/4"

Select Finish  US10B: Oil Rubbed Bronze US15: Satin Nickel US15A: Antique Nickel US19: Matte Black US26: Polished Chrome US14: Polished Nickel US7: French Antique US3: Polished Brass US4: Satin Brass US3NL: Unlacquered Brass Add  $32.00   Select Door Thickness  1-3/8" - 2" Door Thickness 2-1/8" Door Thickness 2-1/4" - 2-7/8" Door Thickness 3" - 3-1/4" Door Thickness   Select Backset - Important Ordering Guide 2-3/8" Backset 2-3/4" Backset   Keying - Important Ordering Guide I Only Ordered One Lock Keyed Different Keyed Alike Add  $5.50
