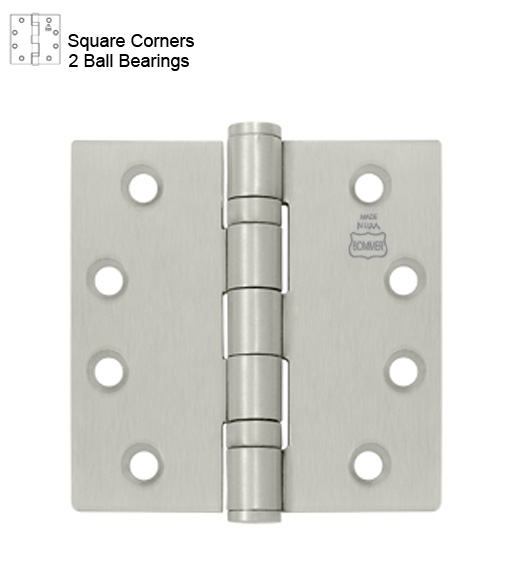

Bommer BB5000-500, 5" x 5" Door Hinge
Large 5" commercial ball bearing door hinge. Medium duty door hinge, standard .146" thickness. Standard full mortise hinge with 5 knuckle design and button tips. BHMA certified architectural grade hinges. Made in the USA.
Specifications for the Bommer BB5000-500 Hinge:
- Hinge Material: Steel
- Height: 5"
- Width: 5"
- Corners: Square
- 2 Ball Bearings for Smooth Action
- Thickness: 0.146"
- Wood Screws: #12 x 1-1/4"
- Machine Screws: #12-24 x 1/2"
- BHMA Certified Hinge
- Non-Handed
- Non-Rising Removable Pin
- Standard Template Hole Pattern
- Full Mortise - Conforms to ANSI A8112 for Ball Bearing Hinges

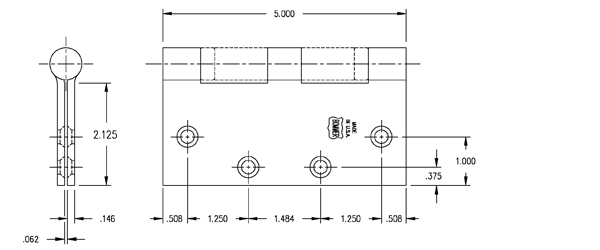

- Bommer BB5000-500 Dimensions Diagram (PDF)
Package with matching finish machine screws and wood screws. For use with both metal and wood doors.
Sold Individually (1 door hinge)
** This item is being discontinued. Very limited quantities available.
|
