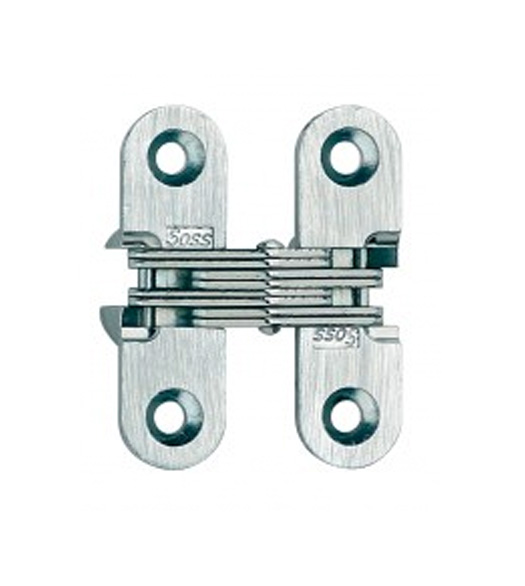

SOSS 203 hinges are for use on 3/4" thick wood doors or metal doors. Package includes one pair of hinges with matching finish #6 x 1" wood screws. When the door is closed, SOSS Invisible Hinges cannot be seen or tampered with. When opened, the riveted hinge pin is non-removable. The installed hinge is firmly anchored in a deep, full mortise, which assists the screws in supporting the door, assuring a stronger door hinge installation.

Also Available For: 1" Thick Doors SOSS 208 Hinge, 1-3/4" Thick Doors SOSS 218 Hinge, 1-3/8" Thick Doors SOSS 216 Hinge, and 2" Thick Doors SOSS 220 Hinge

Features and Specifications of the Concealed Cabinet Door Hinges:

• For use on wood or metal doors.
• Hinges open a full 180°
• Comes packaged with mounting hardware.

Specifications of the SOSS 203 Invisible Hinges:

• Hinge Material: High Strength Steel
• Total Height: 1-3/4"
• Leaf Plate Width: 1/2"
• Minimum Door Thickness: 3/4" Thick Door
• Wood Screws: #6x1" (3.5x25mm)

*Sold In Pairs (2 Door Hinges)

Select Finish  UNP: Unplated 26D: Satin Chrome Add  $9.67 US19: Matte Black Add  $11.72 US15: Satin Nickel Add  $16.23 US26: Polished Chrome Add  $11.72
Quantity
