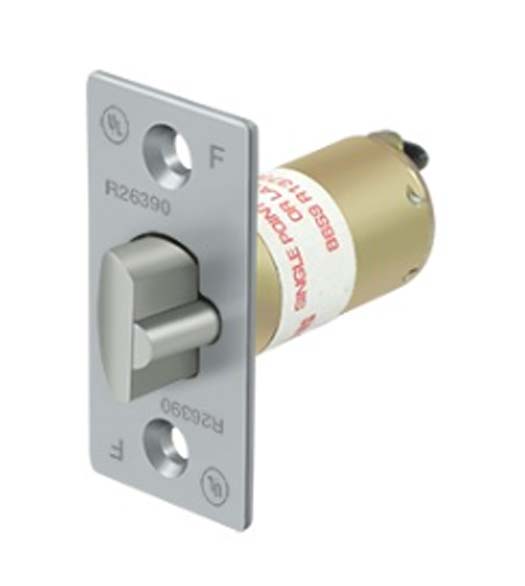

The Deltana Grade 2 Latch is a replacement latch for passage, privacy, or entry function commercial levers. Available with a 2-3/8" or 2-3/4" backset in your choice of Brushed Chrome, Polished Brass and Oil Rubbed Bronze finish.

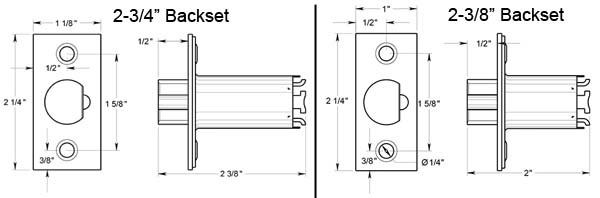

Features and Specifications of the Deltana Grade 2 Latch:

• Latch Plate Overall Length: 2-1/4"
• Latch Plate Length Center to Center: 1-5/8"
• Latch Plate Width, 2-3/4" Backset: 1-1/8"
• Latch Plate Width, 2-3/8" Backset: 1"
• Throw: 1/2"
• UL Listed
• Backset: Optional 2-3/4" or 2-3/8"

Sold Individually

Select Backset - Important Ordering Guide G2RLE275: 2-3/4" Backset G2RLE238: 2-3/8" Backset   Select Finish  U26D: Brushed Chrome U3: Polished Brass U10B: Oil Rubbed Bronze
