| Item No: |
DEL-DSH4SR5 |
| List Price: |
$24.55 |
| Your Price: |
$18.41 |

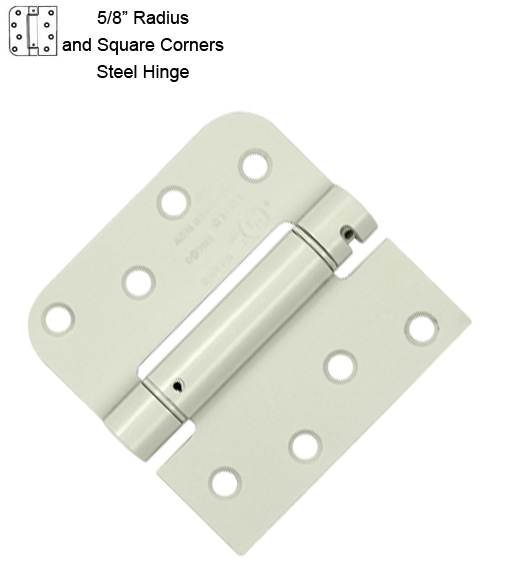

Deltana DSH4SR5, 4" x 4"x 5/8" Radius x Square Corner Leaf Single Action Spring Hinge
Direct fit replacement for THERMA-TRU doors. Packaged complete with One Single Action Spring Door Hinge, Allen Wrench, Adjusting Pin, Locking Pin plus #10 x 1" Wood Screws and #10-24 x 1/2" Machine Screws. Utilizes THERMA-TRU door zig-zag screw hole pattern.
The included Allen Wrench Tool is use to adjust spring tension. The Locking Pin holds the Spring in tension after it is set.
These adjustable tension spring hinges allow you to determine how much closing force you apply to the door (how hard/fast the door self closes).
Specifications of the 4" THERMA-TRU Spring Hinge:
- Hinge Material: Durable Steel
- Height: 4"
- Width: 4"
- Corner: 5/8" Radius Leaf
- Corner: Square Corner Leaf
- Thickness: 0.097" (Residential)
- THERMA-TRU Door Zig-Zag Hole Pattern
- Handed
- Wood Screws: #10 x 1"
- Machine Screws: #10-24 x 1/2"

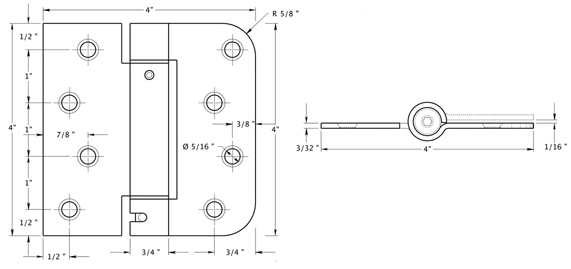

- Deltana DSH4SR5 Hinge Specifications (PDF)
This same hinge is also available as a Stainless Steel THERMA-TRU Spring Hinge.
Sold Individually.
|
