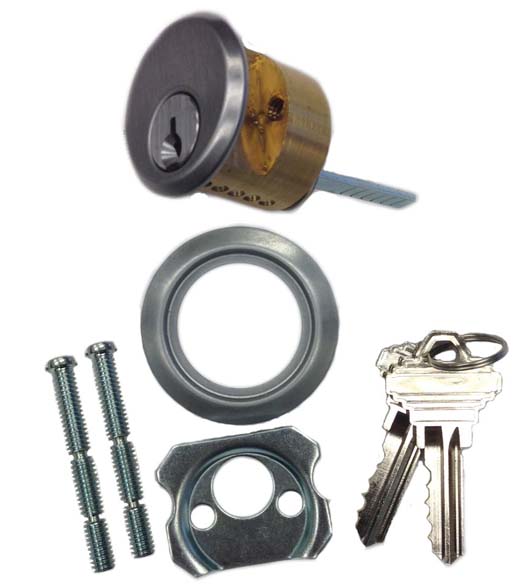

Commercial door rim cylinder lock. Rim cylinders are normally used on the doors exterior to unlatch Rim Panic Devices. This solid brass rim cylinder includes mounting plate, trim ring and mounting screws. Available in Brushed Chrome or Oil Rubbed Bronze finish.

Also available: Global Door Rim Cylinder in Aluminum or Dark Bronze finish.

Specifications: for Global ED-RC051 Rim Cylinder

• Function: Keyed Rim Cylinder
• Material: Brass Cylinder
• Standard 5-pin Schlage "C" Keyway
• Flat "cut to size" horizontal tail piece
• For 1-3/4" to 2-1/4" thick doors
• Packed with 1-7/8" diameter trim ring
• Includes mounting plate and two (2) #12 x 1-7/8" machine screws
• Finish: Optional Brushed Chrome or Oil Rubbed Bronze

Select Finish  ED-RC051-US26D: Brushed Chrome ED-RC051-US10B: Oil Rubbed Bronze   Keying - Important Ordering Guide Only Ordered One Lock Keyed Different Keyed Alike Add  $5.50
