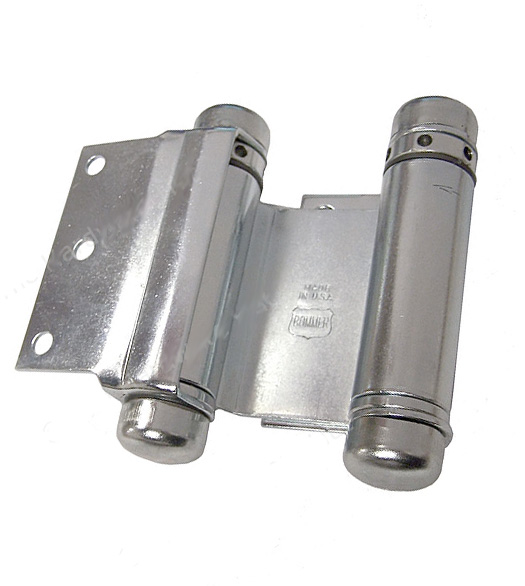

3" Double Acting Spring Hinge. Half Surface type - door flange is surface applied to face of door. Jamb flange is surface applied to door jamb. For doors 3/4" to 1" thick. Packaged with all wood screws.

To find the proper size Bommer Double Acting Spring Hinge for your doors weight and width. use the charts here: Bommer Spring Hinge Charts

Specifications of the Bommer 3023-3 Double Acting Spring Hinge:

• Material: Steel
• Hinge Size: 3"
• Non-Template
• Non-Handed
• Hinge Mounting Type: Half Surface
• Door Thickness: 3/4" to 1" Thick Doors
• Maximum Swing: 90º each direction
• Bommer 3023-3 Dimension Diagram (PDF)

Bommer 3023-3 Hinge Selection for Maximum Door Size
Bommer Hinge Number	2 Hinges		3 Hinges		Door Thickness	Min. Door Height
	Door Weight	Door Width	Door Weight	Door Width
3023-3	35 lbs	2'-0"	39 lbs	2'-8"	3/4" - 1"	5'-0"
Note: Do Not use on Doors with Hinge Edge Beveled.

Sold as a Pair (2 Hinges).

** This item discontinued. NONE available.
