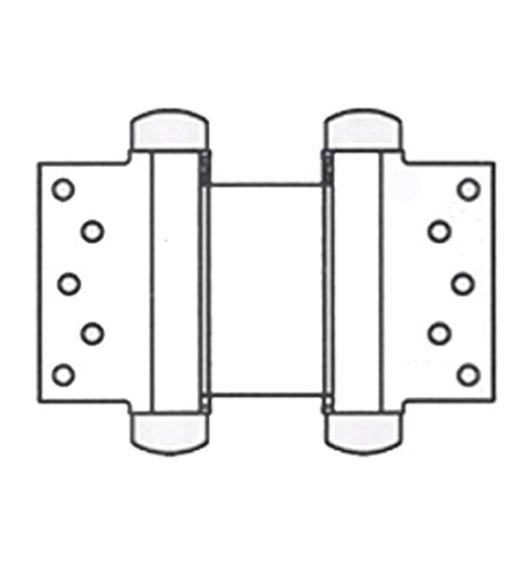

Bommer 3023-6, 6 Inch Double Acting Spring Hinge
6" Double Acting Spring Hinge. Half Surface type - door flange is surface applied to face of door. Jamb flange is surface applied to door jamb. For doors 1-1/4" to 1-3/4" thick. Packaged with all wood screws.
Specifications of the Bommer 3023-6 Double Acting Spring Hinge:
- Material: Steel
- Hinge Size: 6"
- Non-Template
- Non-Handed
- Hinge Mounting Type: Half Surface
- Door Thickness: 1-1/4" to 1-3/4" Thick Doors
- Maximum Swing: 90ยบ each direction
- Bommer 3023-6 Dimension Diagram (PDF)
|
Bommer 3023-6 Hinge Selection for Maximum Door Size |
| Bommer Hinge Number |
2 Hinges |
3 Hinges |
Door Thickness |
Min. Door Height |
| Door Weight |
Door Width |
Door Weight |
Door Width |
| 3023-6 |
75 lbs |
2'-8" |
107 lbs |
3'-0" |
1-1/4" - 1-3/4" |
7'-0" |
| Note: Do Not use on Doors with Hinge Edge Beveled.
|
Sold as a Pair (2 Hinges).
** This item is being discontinued. Very limited quantities available.
|
