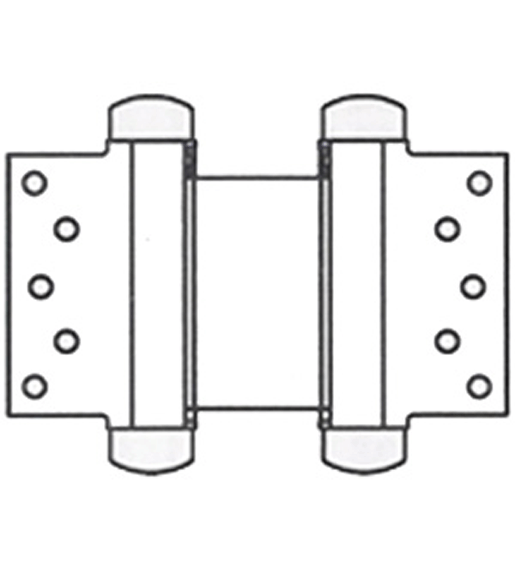

8" Double Acting Spring Hinge. Half Surface type - door flange is surface applied to face of door. Jamb flange is surface applied to door jamb. For doors 1-1/2" to 2" thick. Packaged with all wood screws.

To find the proper size Bommer Double Acting Spring Hinge for your doors weight and width. use the charts here: Bommer Spring Hinge Charts

Specifications of the Bommer 3023-8 Double Acting Spring Hinge:

• Material: Steel
• Hinge Size: 8"
• Non-Template
• Non-Handed
• Hinge Mounting Type: Half Surface
• Door Thickness: 1-1/2" to 2" Thick Doors
• Maximum Swing: 90º each direction
• Bommer 3023-8 Dimension Diagram (PDF)

Bommer 3023-8 Hinge Selection for Maximum Door Size
Bommer Hinge Number	2 Hinges		3 Hinges		Door Thickness	Min. Door Height
	Door Weight	Door Width	Door Weight	Door Width
3023-8	103 lbs	3'-6"	143 lbs	4'-0"	1-1/2" - 2"	7'-0"
Note: Do Not use on Doors with Hinge Edge Beveled.

Sold as a Pair (2 Hinges).

** This item is being discontinued. Very limited quantities available.

Select Finish  601: Bright Black
Note: This item is either Special Order or has been Discontinued. Please Contact Us.
Quantity
