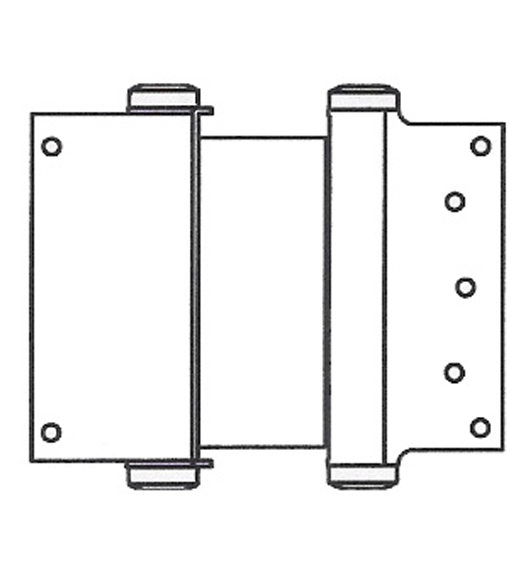

5" Double Acting Spring Hinge. Box clamp type door flange is attached to door with thru-bolts and nuts. Jamb flange is surface applied to door jamb. For doors 1-1/8" thick. Packaged with all mounting hardware.

Specifications of the Bommer 3024-5 Double Acting Spring Hinge:

• Finish: Primer
• Material: Steel
• Hinge Size: 5"
• Non-Template
• Non-Handed
• Door Thickness: 1-1/8" Thick Doors
• Maximum Swing: 90º each direction
• Bommer 3024-5 Dimension Diagram (PDF)

Bommer 3024-5 Hinge Selection for Maximum Door Size
Bommer Hinge Number	2 Hinges		3 Hinges		Door Thickness	Min. Door Height
	Door Weight	Door Width	Door Weight	Door Width
3024-5	65 lbs	2'-8"	93 lbs	3'-0"	1-1/8"	6'-8"
Note: Doorbox clamps are not adjustable.

*Sold as a Pair (2 Hinges).

**This item is Discontinued.



Note: This item is either Special Order or has been Discontinued. Please Contact Us.
