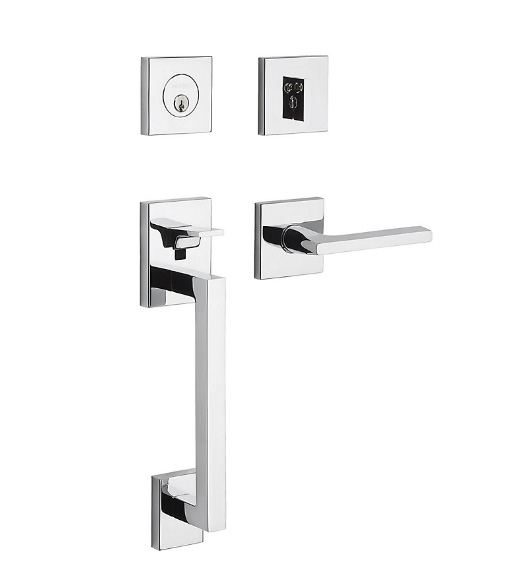

The Minneapolis Sectional Handleset was made to grace the big city; but even if you don't live in the urban jungle, this modern handleset is perfect to bring the glamour of Minneapolis to any home. It is available as a single cylinder handleset which means that it has a keyed lock on the outside and a thumb turn on the inside. It features an easy installation, it has an adjustable backset for 2-3/4 inches or 2-3/8 inches for a door thickness of 1-3/4 inches.

This Baldwin Tubular Entrance Trim Set is designed for easy installation for standard pre-drilled wood or metal doors. It is fully reversible to accommodate all door conditions. Forged out of solid brass, it is built to last and is backed by a limited lifetime warranty to assure that it meets the Baldwin standards of excellence.

Features of the Baldwin 85390 Minneapolis Entrance Set:

• Entrance handle, cylinder collar, lever, rose and turn piece are manufactured from solid forged brass for maximum strength and durability.
• Estate locksets are designed for easy installation in standard pre-bored wood or metal doors.
• Locksets accommodate a door thickness of 1-3/4”. Conversion kit available for 2” and 2-1/4” thick doors at an additional charge.
• Deadbolt and latch case are formed of steel for strength. Most interior working parts are made of solid brass or steel for maximum strength and smooth operation.
• Adjustable backset 2-3/8” or 2-3/4” latch and deadbolt supplied standard.
• Deadbolt and latch supplied with a 1” face plate
• Deadbolt is furnished with a steel reinforcing strike, two 3” security jamb screws and is covered with an armored front to conceal the fasteners and guard against theft.
• Latches are supplied standard with a full lip strike.
• Solid brass deadbolt has 1” throw when extended and a hardened steel insert for maximum protection and security.
• Solid brass latch bolt has a 1/2” throw when extended to fully engage the door jamb.
• Cylinder: Cylinder supplied with 5-pin keying.
• Keys are designed with a 1-1/4” wide bow surface.
• Fully Reversible to accommodate most door conditions and facilitate installation
• Lockset accommodates any latch to deadbolt center to center measurement greater than 4-3/8”
• Designed to fit 2-1/8” face bore with no additional hardware.
• Lifetime Limited Warranty on workmanship, materials, operation and PVD (003) polished brass finish.

Specifications of the Contemporary Tubular Minneapolis Handleset:

• Interior Trim: 5162 Lever
• Exterior Deadbolt Length: 2-5/8" square
• Exterior Top Plate Height: 3-5/8"
• Exterior Top Plate Width: 2-5/8"
• Exterior Bottom Plate Height: 2-5/8"
• Exterior Bottom Plate Width: 1-29/32"
• Exterior Overall Projection: 2-23/32"
• Interior Deadbolt Rosette Length: 2-5/8" square
• Interior Lever Rosette Length: 2-21/32" square
• Interior Lever Length: 4-15/32"
• Door Thickness: 1-3/4"
• Backset: 2-3/4" or 2-3/8"
• Deadbolt to Latch Spacing: 5-1/4" center to center
• Baldwin 85390 Minneapolis Sectional Handleset Specifications (PDF)

When Selecting a Function:

• Full Dummy Set: Trim for non-working doors. It does not latch and does not lock. Usually used as matching trim for the non-working side of double doors.
• Single Cylinder: From the exterior, a thumb piece operates the entrance set latch and a key operates the deadbolt. From the interior, the lever operates the latch as well as the deadbolt for immediate egress.

Select Function - Important Ordering Guide FD: Full Dummy ENT: Single Cylinder Add  $98.40   Select Finish  260: Polished Chrome 050: Satin Brass and Black 060: Satin Brass and Brown 102: Oil Rubbed Bronze 112: Venetian Bronze 190: Satin Black 003: PVD Polished Brass 055: PVD Polished Nickel 056: PVD Satin Nickel 402: Distressed Oil Rubbed Bronze 044: PVD Satin Brass   Select Handing - Important Ordering Guide Right Hand Door Left Hand Door   Keying - Important Ordering Guide Non Keyed Function I only ordered one Keyed Different Keyed Alike Add  $5.50
