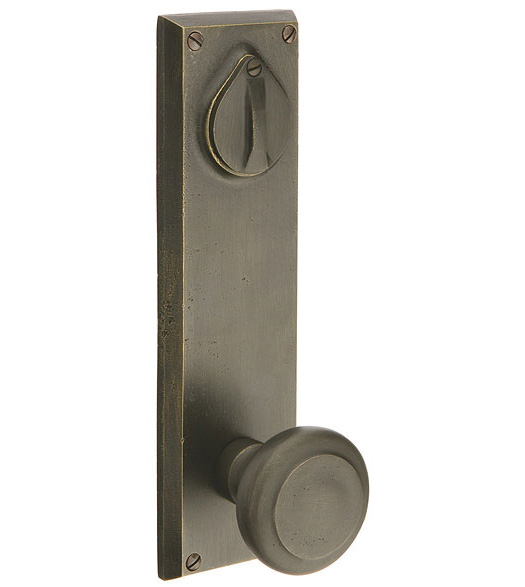

The Sandcast Rectangular Lockset has a rustic look with its covered deadbolt and bronze finishes. Choose from flat black bronze, medium bronze, and white bronze finishes for a colonial look that would be at home on any plantation house. The Sandcast Rectangular Keyed Style Lockset is available with a wide array of lever and knob choices for a finished look that matches your personality. The Rectangular Sideplate is available in dummy, single cylinder, and interconnected single cylinder functions.

Sandcasting is a process for casting metal in sand molds. The mold is made by packing the sand around a pattern. Molten bronze is then poured into a mold cavity formed out of sand. Each sand mold is used only once. The sand is then recycled for the next piece.

Features of the Rectangular Entry Door Lockset with Covered Deadbolt:

• Keyway: Schlage C
• Will fit standard 2-1/8" door preparations.
• Solid brass latch with saw-proof insert.

Specifications for the Emtek Rectangular Entry Set:

• Material: Sandcast Bronze
• Overall Height: 8-7/8"
• Bore Hole Spacing (distance between deadbolt and lever latch): 5-1/2" Center to Center
• Overall Width: 2-1/2"
• Plate Thickness: 3/8"
• Doors Thickness: 1-5/8" - 3"
• Backset: 2-3/8" or 2-3/4"
• Deadbolt: Full 1" Throw
• Emtek 7565 Specifications (PDF)

Available Functions

• Full Dummy Set: Trim for non-working doors. It does not latch and does not lock. Usually used as matching trim for the non-working side of double doors.
• Single Cylinder: From the exterior, a knob/lever operates the handleset latch and a key operates the deadbolt. From the inside, a thumbturn unlocks the deadbolt and a knob/lever operates the latch.
• Interconnected Single Cylinder: The deadbolt is thrown and retracted by a key from the exterior and a thumbturn from the interior. The interior knob/lever opens the door without having to unlock the deadbolt for immediate egress.

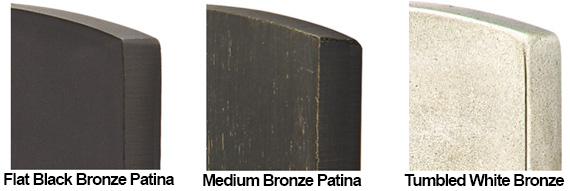

Select Function - Important Ordering Guide 7565: Full Dummy Set 7560: Single Cylinder 7560443: Interconnected Single Cylinder Add  $70.40   Select Finish  FB: Flat Black Bronze Patina MB: Medium Bronze Patina TWB: Tumbled White Bronze   Select Door Thickness  1-1/4" - 1-3/4" Door Thickness 1-3/4" - 2-3/16" Door Thickness 2-1/4" - 2-3/4" Door Thickness   Select Backset - Important Ordering Guide 2-3/8" Backset 2-3/4" Backset   Select Trim    AR: Aurora Lever   BR: Bryce Lever   CD: Cody Lever   MA: Mariposa Lever   CR: Cimarron Lever   D: Durango Lever   MT: Montrose Lever   TT: Teton Lever   LR: Lariat Lever   YM: Yuma Lever   BZEG: Egg Knob   BU: Butte Knob   BZRN: Round Knob   LW: Lowell Clear Crystal Knob   WC: Winchester Knob   BL: Bristol Clear Crystal Knob   HT: Hampton Clear Crystal Knob   LW: Lowell Clear Crystal Knob   WS: Windsor Clear Crystal Knob   Handing - Important Ordering Guide Right Handing Left Handing   Keying - Important Ordering Guide Non-Keyed (Full Dummy Function) I Only Ordered One Lock Keyed Different Keyed Alike Add  $5.50
