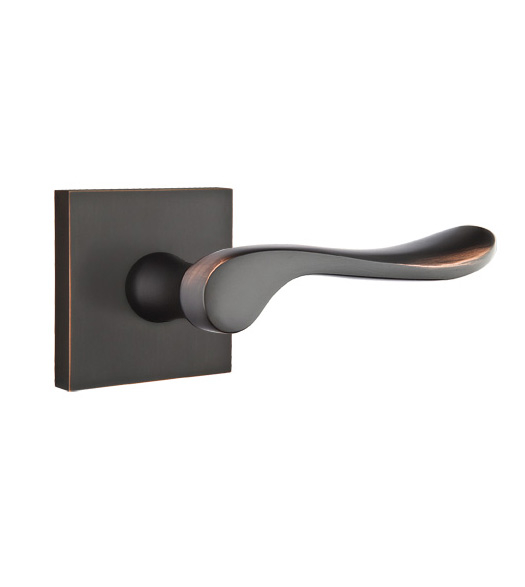

Emtek 5050LU, Luzern Leverset with Square Rose
The Luzern Lever with Square Rosette is stylish, a great choice for transitional home decor. It features a lovely blending of traditional and modern shapes, that together make a door leverset that has flow. The Luzern Leverset with Square Rose is available in dummy, passage, and privacy functions. It will fit 1-1/4 inch to 3 inch thick doors and has an optional 2-3/8 inch or 2-3/4 inch backset.
Features of the Luzern Door Leverset with Square Rose:
- Fits standard door cut outs (2-1/8" pre-drilled doors).
- Lever is surface mounted (rosette screws to the door's face).
- Solid brass lever and trim rose.
- Sold as complete set.
- Easy to install.
Specifications of the Modern Brass Luzern Lever with Square Rose:
- Material: Brass
- Lever Length: 4-3/4"
- Lever Projection: 2-1/4"
- Clearance: 1-1/2"
- Rose Height: 2-1/2" square
- Door Thickness: 1-1/4 - 3"
- Backset: 2-3/8" or 2-3/4"
Available Functions:
- Double Dummy: No door latch. Door levers on both sides of the door. Package Includes: 2 levers, 2 roses, and mounting screws.
- Passage (Hall or Closet): For doors that don't need locking. Latch operates from either side of door. Package Includes: 2 levers, 2 roses, door latch, strike plate, dust box, faceplate, spindle, and mounting screws.
- Privacy (Bedroom or Bathroom): For doors that could need privacy locking. Latch operates from either side. Push button on interior rose engages privacy; emergency release hole is on exterior rose. Turning inside lever will release privacy push button and retract the door latch. Package Includes: 2 levers, 2 roses, privacy button, door latch, strike plate, dust box, faceplate, spindle, and mounting screws.
Levers are Handed. Handing Guide
|
