| Item No: |
EMT-70511OCL |
| List Price: |
$270.00 |
| Your Price: |
$216.99 |
Emtek 70511OCL, Octagon Leverset with #11 Arched Rose

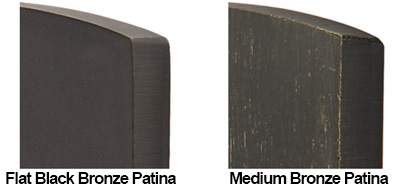

The Octagon Lever with Arched Rose is a great addition to period homes. Its old-world charm can be found not only in the uniqueness of the shape of both lever and rose, but also in the rustic finishes offered. Choose from either a flat black or medium bronze finish. The Octagon Leverset with #11 Arched Rose is available in dummy, passage, and privacy functions.
Features of the Octagon Door Lever with Arched Rose:
- Fits standard door cut outs (2-1/8" pre-drilled doors).
- Lever is surface mounted (rosette screws to the door's face).
- Solid brass lever and trim rose.
- Sold as complete set.
- Easy to install.
Specifications of the Octagon Lever with Arched #11 Rose:
- Material: Cast Bronze
- Lever Length: 4-1/2"
- Lever Projection: 2-1/4"
- Clearance: 1-3/8"
- Rose Length: 4-1/2"
- Rose Width: 2-1/2"
- Door Thickness: 1-3/8 - 3"
- Backset: 2-3/8" or 2-3/4"
Available Functions:
- Double Dummy: No door latch. Door levers on both sides of the door. Package Includes: 2 levers, 2 roses, and mounting screws.
- Passage (Hall or Closet): For doors that don't need locking. Latch operates from either side of door. Package Includes: 2 levers, 2 roses, door latch, strike plate, dust box, faceplate, spindle, and mounting screws.
- Privacy (Bedroom or Bathroom): For doors that could need privacy locking. Latch operates from either side. Push button on interior rose engages privacy; emergency release hole is on exterior rose. Turning inside lever will release privacy push button and retract the door latch. Package Includes: 2 levers, 2 roses, privacy button, door latch, strike plate, dust box, faceplate, spindle, and mounting screws.
Levers are Handed. Handing Guide
|
