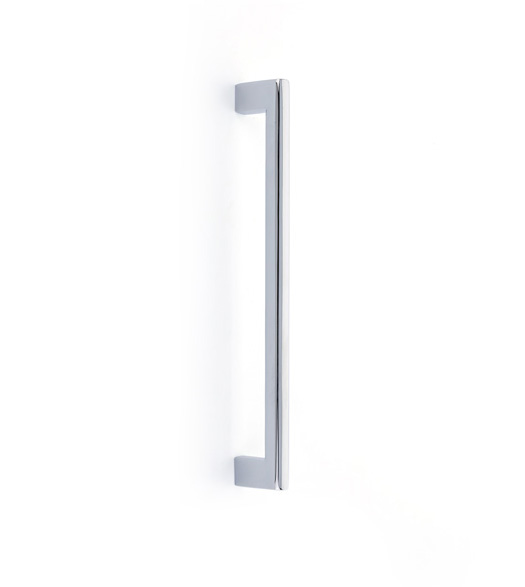

The Modern Trail Thru-Bolt Handle has a very sleek design that suits contemporary decors. Choose from 12 inch and 18 inch center to center lengths for your wood, metal, and fiberglass interior and exterior doors. This Trail Door Pull comes packaged with everything you'll need to mount it on doors up to 1-3/4 inches thick. It is available in several contemporary finish colors.

Thru-Bolted Mounting: Pull bolts through the door.

Also Available: Trail Pull with Back-to-Back Mounting

Specifications of the Emtek Trail Door Pull:

• Material: Brass
• Door Thickness: for doors up to 1-3/4" thick
• Includes installation hardware required for fiberglass, wood, and metal doors.
• Comes packaged with (2) 1" long 1/4"-20 screws, (2) 1" long #10-32 screws, (2) 2" #10-32 screws, and (2) screw caps.
• Emtek Trail Pull Dimensions Diagram (PDF)

Available in 2 Sizes:

EMT-86440:
• Total Length: 13"
• Center to Center Length: 12"
• Pull Handle Width: 5/8"
• Total Projection: 2"
• Base: 5/8" x 1"

EMT-86441:
• Total Length: 19"
• Center to Center Length: 18"
• Pull Handle Width: 5/8"
• Total Projection: 2"
• Base: 5/8" x 1"

Sold individually with thru-bolt mounting.



Select Size  86440: Length c/c 12" 86441: Length c/c 18 Add  $80.00   Select Finish  US10B: Oil Rubbed Bronze US15: Satin Nickel US19: Matte Black US26: Polished Chrome US14: Polished Nickel US4: Satin Brass US3NL: Unlacquered Brass Add  $16.00
