| Item No: |
GRA-ARCSGR-ONE |
| List Price: |
$1,050.00 |
| Your Price: |
$840.00 |

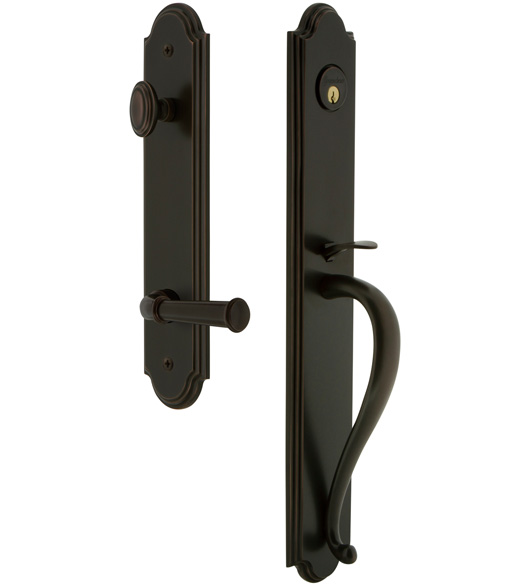

Grandeur ARCSGR-ONE, Arch Handleset with S Grip
The Classic Arched Handleset is a great way to add a traditional touch to your front door. It has a timeless arch silhouette and S curved grip for an elegance that is only accentuated by the several lovely finish colors in which it is available. The Arch One-Piece S Grip Entry Set comes with your choice of interior knob or lever. It is available in single cylinder and dummy functions and will fit 1-3/4 inch to 2-1/4 inch thick doors that have 2-3/8 inch or 2-3/4 inch backsets.
Features of the Grandeur Arc One-Piece S Grip Entry Set:
- Fits most pre-drilled doors.
- Ideal for doors that are 84 inches or taller.
- Solid forged brass construction.
- Lifetime Mechanical Warranty
- 10 Year Finish Warranty
Specifications of the Traditional Arched S Grip Handleset:
- Exterior Plate Height: 19"
- Exterior Plate Width: 3"
- Exterior Projection: 3.29"
- Interior Plate Height: 11"
- Interior Plate Width: 2-1/2"
- Deadbolt Throw: 1"
- Door Thickness: Adjustable 1-3/4" to 2-1/4"
- Backset: 2-3/8" or 2-3/4"
When Selecting a Function:
- Single Cylinder Handleset: From the exterior, a thumb piece operates the latch and a key operates the deadbolt. From the interior, the lever operates the latch and a thumbturn operates the deadbolt.
- Dummy Handleset: This handleset is does not function--neither locking nor latching.
Inside trim levers are handed. Click Here to determine left or right handed.
|
