| Item No: |
BOM-7122-652 |
| List Price: |
$351.81 |
| Your Price: |
$351.81 |
Bommer 7122-652, Spring Door Pivot Hinge Mortised
Bommer Industries has been in business since 1876, with over 125 years of quality products. Their products are American made with American steel.

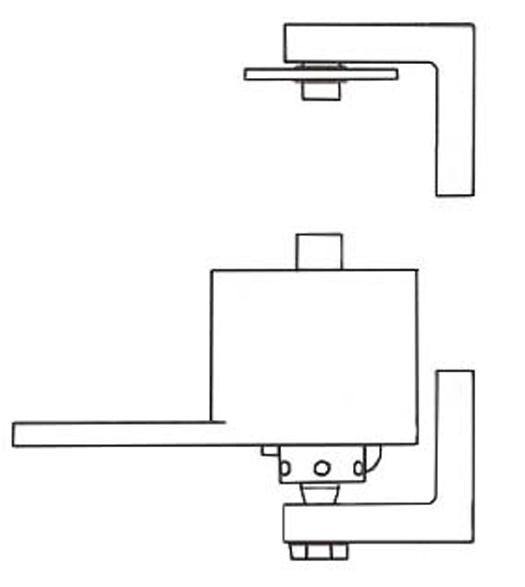

Bommer 7122 Spring Door Pivot Hinge, Mortised Applied (Both Top and Bottom pivots are mortised into the door). Cast Steel construction pivot hinge for doors up to 36" wide, 2-1/2" thick with a maximum door weight of 75 lbs.
Specifications of the Adjustable Spring Mortise Pivot Hinge:
- Maximum Door Width: 36"
- Maximum Door Thickness: 2-1/2"
- Maximum Door Weight: 75 lbs.
- Cast Steel Construction
- Mortise Mounted Pivots
- Double Acting
- Maximum Swing: 130ยบ each direction
- Ball Bearing Pivot
- Non-Handed
- Adjustable Spring Tension
- Finish: Satin Chrome
- Flat Door Bracket: For doors not less than 1" thick
- Flat Jamb Bracket: 1-1/4" Wide
- Packaged with #12 - 1-1/4" and #10 - 1" Flat Head Wood Screws
- Bommer 7122 Dimensions (PDF)
- How to Reactivate Tension on Bommer Spring Pivots
Sold individually as a set, with 1 pivot , 1 each jamb and door bracket, 1 top pivot assembly with jamb bracket, and mounting screw hardware. Enough to do one door.
This Item is Discontinued
0 in stock
|
