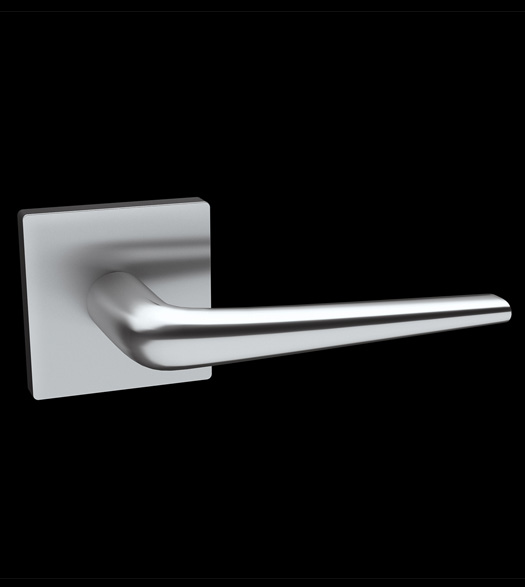

The Sleek Stainless Steel Door Lever with Square Rose is available in dummy, privacy, and passage functions. It will fit door thicknesses from 1-3/8 inches to 2 inches with either 2-3/8 inch or 2-3/4 inch backsets. This Modern Stainless Steel Lever with Square Rosette features a contemporary tapered end for a clean, chic look. The square rosette only serves to add to the modern design aesthetic, making this door handle a wonderful choice for those wishing to add style to their interior doors.

Features of the AHI SIG113 Stainless Steel Leverset:

• For residential or commercial applications
• Fits standard door cut outs (2-1/8" pre-drilled doors)
• Field reversible tubular latch
• Premium latch requires only 28° rotation to retract latchbolt
• Meets standards of the Americans with Disabilities Act (ADA)

Specifications of the SIG113 Sleek Stainless Steel Door Lever with 204 Square Rose:

• Material: Stainless Steel
• Finish: Satin Stainless Steel
• Lever Length: 4-7/8" (124 mm)
• Lever Projection: 1-13/16" (46 mm)
• Spindle Width: 0.31" (8 mm)
• Rose Length: 2-1/2" (64 mm) square
• Door Thickness: adjustable for 1-3/8" to 2"
• Backset: 2-3/8" or 2-3/4"

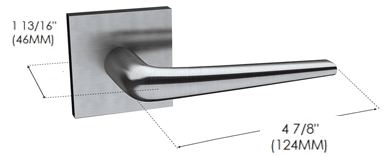

• AHI SIG113 Lever Specifications Diagram (PDF)

When Selecting a Function:

• Single Dummy: For use as a door pull or to match trim. Trim is on one side of door. Lever is surface mounted (mounting plate screws to the doors face).
• Double Dummy: No door latch. Door levers on both sides of the door. For use with a standard 2-1/8" bore hole pre-drilled door.
• Passage (hall or closet): For doors that don't need locking. Latch operates from either side of door.
• Privacy (bedroom or bathroom): For doors that could need privacy locking. Latch operates from either side. Push button on interior rose engages privacy; emergency release hole is on exterior rose. Turning inside lever will release privacy push button and retract the door latch.

Note: Single Dummy is Handed. All other functions are non-handed. Handing Guide

Select Function - Important Ordering Guide SD-RH: Single Dummy (right handing) SD-LH: Single Dummy (left handing) DD: Double Dummy Add  $21.00 PA: Passage (hall or closet) Add  $28.00 PV: Privacy (bedroom or bathroom) Add  $35.00   Select Backset - Important Ordering Guide 2-3/8" Backset 2-3/4" Backset
